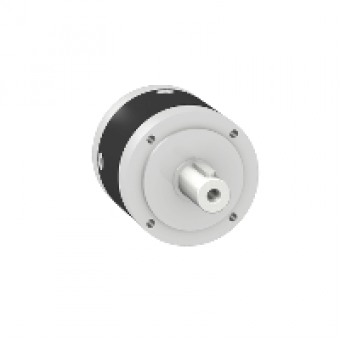

GBX120040K - gearbox straight teeth GBX - Ø 120 mm - reduction 40:1 < 9 arc.min - 230 N.m, Schneider Electric
- Product Code: GBX120040K
- Brand: Schneider Electric
- Availability: To be confirmed
- € 694.25 Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM 32
product or component type
PLANETARY GEARBOX
gear box type
STRAIGHT TEETH
device short name
GBX
product compatibility
BMI 70 MM 2 MOTOR STACKS
gearbox external diameter
120 MM
reduction ratio
40 1
COMPLEMETARY CHARACTERISTICS
torsional backlash
< 9 ARC.MIN
torsional rigidity
13 N.M ARCMIN
housing colour
BLACK
housing material
BLACK ANODIZED ALUMINIUM
shaft material
C 45
additional information
LUBRICATED LIFE
service life in hours
30000 H AT 100 RPM AT 30 DC
mounting position
ANY POSITION
efficiency
94
maximum radial force Fr
1500 N AT 100 RPM FORCE APPLIED AT MID-DISTANCE FROM OUTPUT SHAFT DURING 30000 HOUR AT 30 C
maximum axial force Fa
2100 N AT 100 RPM DURING 30000 HOUR AT 30C
moment of inertia
1.3 KG.CM
continuous output torque
230 N.M AT 100 RPM AT 30 DC
maximum output torque
368 N.M AT 100 RPM AT 30 DC
product weight
8 KG
no load running torque
0.3 N.M
reduction ratio
40
compatibility code
GBX
