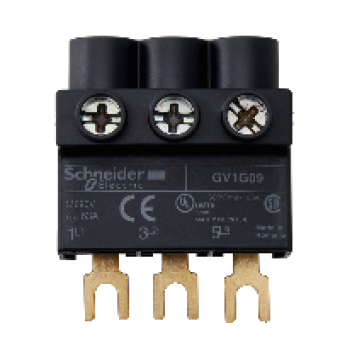

GV1G09 - TeSys GV2 TeSys D & TeSys U - terminal block - 3P - from the top, Schneider Electric
- Product Code: GV1G09
- Brand: Schneider Electric
- Availability: To be confirmed
- € 6.37 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
LINERGY
product name
FT
device short name
GV1G
product or component type
TERMINAL BLOCK
accessory / separate part category
CONNECTION ACCESSORY
poles description
3P
range compatibility
TESYS - GV2
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
63 A
mounting location
TOP
IP degree of protection
IP20 ACCORDING TO IEC 60529
[Ui] rated insulation voltage
690 V ACCORDING TO IEC 60947-1
connections - terminals
SCREW CLAMP TERMINALS 1 SOLID AWG 4
tightening torque
1.7 N.M - ON SCREW CLAMP TERMINALS
product weight
0.04 KG
compatibility code
GV1G
The Schneider Electric GV1G09 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
