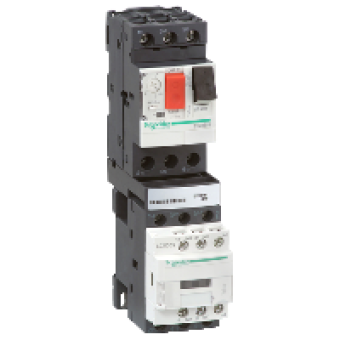

GV2DM107P7 - DOL combination starter - TeSys GV2-DM - 1.6...2.5 A - 230 V AC, Schneider Electric
- Product Code: GV2DM107P7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS
device short name
GV2DM
product or component type
MOTOR STARTER
motor starter type
NON REVERSING
coordination type
TYPE 1
poles description
3P
utilisation category
AC-3
motor power kW
0.75 KW AT 400415 V AC 5060 HZ
[Uc] control circuit voltage
230 V AC 5060 HZ
magnetic protection adjustment range
33.5 A
COMPLEMETARY CHARACTERISTICS
device composition
1 3-POLE CONTACTOR
thermal protection adjustment range
1.6..2.5 A
rated breaking capacity
IQ 50 KA AT 400415 V CONFORMING TO IEC 60947-4-1
product weight
0.596 KG
height
176.4 MM
width
45 MM
depth
99.6 MM
compatibility code
GV2DM
The Schneider Electric GV2DM107P7 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
