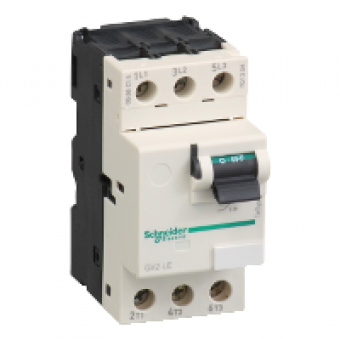

• GV2LE22 - TeSys GV2 - Circuit breaker - magnetic - 25 A - screw clamp terminals, Schneider Electric

GV2LE22 - TeSys GV2 - Circuit breaker - magnetic - 25 A - screw clamp terminals, Schneider Electric

  • € 27.80 Ex Tax:

MAIN CHARACTERISTICS
range of product
TESYS GV2
range
TESYS
product name
TESYS GV2
device short name
GV2LE
product or component type
CIRCUIT BREAKER
device application
MOTOR
poles description
3P
network type
AC
utilisation category
CATEGORY A CONFORMING TO IEC 60947-2
network frequency
5060 HZ CONFORMING TO IEC 60947-2
breaking capacity
50 KA ICU AT 230240 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ics] rated service short-circuit breaking capacity
100 AT 230240 V AC 5060 HZ CONFORMING TO IEC 60947-2
trip unit rating
25 A
trip unit technology
MAGNETIC
magnetic tripping current
327 A
COMPLEMETARY CHARACTERISTICS
mounting mode
BY CLIPS
mounting support
PLATE
mounting position
HORIZONTAL
motor power kW
9 KW AT 400415 V AC 5060 HZ
control type
ROCKER LEVER
[In] rated current
25 A
[Ue] rated operational voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ui] rated insulation voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-2
power dissipation per pole
1.8 W
mechanical durability
100000 CYCLES
electrical durability
100000 CYCLES FOR AC-3 AT 415 V
operating rate
40 CYCH
rated duty
CONTINUOUS CONFORMING TO IEC 60947-4-1
direct connector
WITHOUT
connections - terminals
SCREW CLAMP TERMINALS 2 CABLES 1...6 MM - CABLE STIFFNESS SOLID
tightening torque
1.7 N.M ON SCREW CLAMP TERMINALS
mechanical robustness
SHOCKS 30 GN CONFORMING TO IEC 60068-2-27
suitability for isolation
YES CONFORMING TO IEC 60947-1
phase failure sensitivity
YES
height
89 MM
width
45 MM
depth
78.5 MM
product weight
0.33 KG
compatibility code
GV2LE
