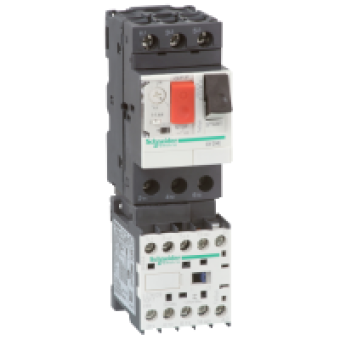

GV2ME10K1BW3 - DOL combination starter - TeSys GV2-ME - 4...6.3 A - 24 V DC, Schneider Electric
- Product Code: GV2ME10K1BW3
- Brand: Schneider Electric
- Availability: To be confirmed
- € 62.17 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS
range
TESYS
device short name
GV2ME
product or component type
MOTOR STARTER
motor starter type
NON REVERSING
poles description
3P
utilisation category
AC-3
motor power kW
3 KW AT 500 V AC 5060 HZ
[Uc] control circuit voltage
24 V DC
magnetic tripping current
78 A
COMPLEMETARY CHARACTERISTICS
device composition
1 3-POLE CONTACTOR
coordination type
TYPE 1
thermal protection adjustment range
4...6.3 A
breaking capacity
IQ = 50 KA AT 400415 V AC 5060 HZ CONFORMING TO IEC 60947-4-1
product weight
0.46 KG
height
152 MM
width
45 MM
depth
87 MM
compatibility code
GV2ME
