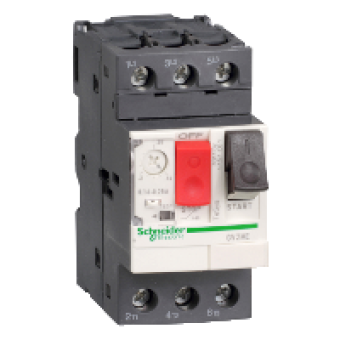

GV2ME20 - TeSys GV2-Circuit breaker-thermal-magnetic - 13...18 A - screw clamp terminals, Schneider Electric

  • € 42.52 Ex Tax:

MAIN CHARACTERISTICS
range of product
TESYS GV2
range
TESYS
product name
TESYS GV2
device short name
GV2ME
product or component type
CIRCUIT BREAKER
device application
MOTOR
trip unit technology
THERMAL-MAGNETIC
COMPLEMETARY CHARACTERISTICS
poles description
3P
network type
AC
utilisation category
AC-3 CONFORMING TO IEC 60947-4-1
network frequency
5060 HZ CONFORMING TO IEC 60947-4-1
mounting mode
BY CLIPS
mounting support
RAIL
mounting position
HORIZONTAL
motor power kW
7.5 KW AT 400415 V AC 5060 HZ
breaking capacity
100 KA ICU AT 230240 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ics] rated service short-circuit breaking capacity
100 AT 230240 V AC 5060 HZ CONFORMING TO IEC 60947-2
control type
PUSHBUTTON
[In] rated current
13...18 A
thermal protection adjustment range
13...18 A
magnetic tripping current
223 A
[Ue] rated operational voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ui] rated insulation voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ith] conventional free air thermal current
18 A CONFORMING TO IEC 60947-4-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-2
power dissipation per pole
2.5 W
mechanical durability
100000 CYCLES
electrical durability
100000 CYCLES FOR AC-3 AT 440 V
operating rate
25 CYCH
rated duty
CONTINUOUS CONFORMING TO IEC 60947-4-1
direct connector
WITHOUT
connections - terminals
SCREW CLAMP TERMINALS 2 CABLES 1...6 MM - CABLE STIFFNESS SOLID
tightening torque
1.7 N.M - ON SCREW CLAMP TERMINALS
suitability for isolation
YES CONFORMING TO IEC 60947-1
phase failure sensitivity
YES CONFORMING TO IEC 60947-4-1
height
89 MM
width
45 MM
depth
78.2 MM
product weight
0.26 KG
compatibility code
GV2ME
