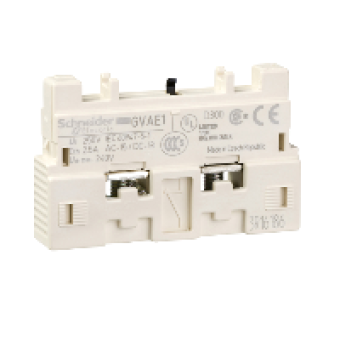

GVAE1 - TeSys GV2 & GV3 - auxiliary contact - 1 NO/NC, Schneider Electric
- Product Code: GVAE1
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4.32 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS GV2
range
TESYS
device short name
GVAE
product or component type
AUXILIARY CONTACT BLOCK
product compatibility
GV2L
pole contact composition
1 NO NC
connections - terminals
SCREW CLAMP TERMINALS 1 CABLE 1...2.5 MM - CABLE STIFFNESS SOLID
quantity per set
SET OF 10
COMPLEMETARY CHARACTERISTICS
mounting location
FRONT SIDE
[Ui] rated insulation voltage
300 V - CONFORMING TO UL 508
[Ue] rated operational voltage
24..240 V AC
[Ith] conventional free air thermal current
2.5 A
protection type
GG FUSE <= 10 A
mechanical durability
100000 CYCLES
minimum switching current
5 MA
minimum switching voltage
17 V
rated operational power in VA
120 VA AT 110...120 V AC-15 - ELECTRICAL DURABILITY 100000 CYCLES
rated operational power in W
15 W AT 48 V DC-13 - ELECTRICAL DURABILITY 100000 CYCLES
tightening torque
<= 1.4 N.M - ON SCREW CLAMP TERMINALS
height
10 MM
width
44.5 MM
depth
15 MM
product weight
0.015 KG
compatibility code
GVAE
