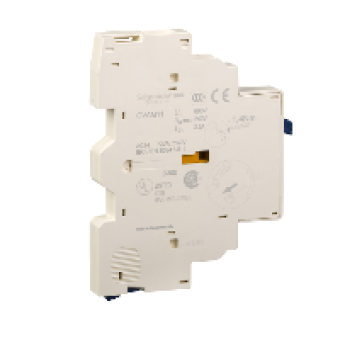

GVAM11 - MAN-STARTER SHORT CIR CONTACT 575VAC 1, Schneider Electric
- Product Code: GVAM11
- Brand: Schneider Electric
- Availability: To be confirmed
- € 9.85 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS GV2
range
TESYS
device short name
GVAM
product or component type
AUXILIARY CONTACT BLOCK
product compatibility
GV2L
range compatibility
TESYS GV2 GV2 CIRCUIT BREAKER
auxiliary contacts operation
SHORT-CIRCUIT SIGNAL 1 CO
pole contact composition
1 C O
connections - terminals
SCREW CLAMP TERMINALS 1 CABLE 1...2.5 MM - CABLE STIFFNESS SOLID
COMPLEMETARY CHARACTERISTICS
mounting location
LEFT SIDE
[Ui] rated insulation voltage
690 V - CONFORMING TO IEC 60947-1
[Ue] rated operational voltage
24..240 V AC
[Ith] conventional free air thermal current
2.5 A FOR FAULT SIGNALLING
protection type
GB2CB... CIRCUIT BREAKER RATING ACCORDING TO OPERATIONAL CURRENT FOR UE <= 415 V
mechanical durability
100000 CYCLES
minimum switching current
5 MA
minimum switching voltage
17 V
rated operational power in VA
36 VA AT 24 V AC-14 - ELECTRICAL DURABILITY 1000 CYCLES AT 1.5 A
rated operational power in W
120 W AT 240 V DC-13 - ELECTRICAL DURABILITY 100000 CYCLES
tightening torque
<= 1.4 N.M - ON SCREW CLAMP TERMINALS
height
89 MM
width
9.3 MM
depth
66 MM
product weight
0.055 KG
compatibility code
GVAM
