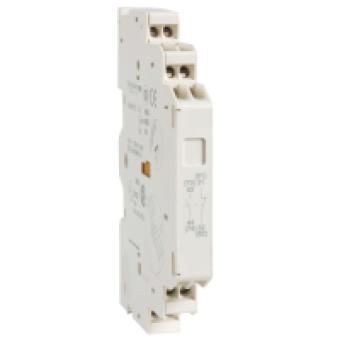

GVAN203 - TeSys GV2 & GV3 - auxiliary contact block - 2 NO, Schneider Electric
- Product Code: GVAN203
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.97 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS GV2
range
TESYS
device short name
GVAN
product or component type
AUXILIARY CONTACT BLOCK
product compatibility
GV2L
pole contact composition
2 NO
connections - terminals
control circuit : spring terminals 1 cable 0.75...2.5 mm² - cable stiffness: flexible - without cable end
COMPLEMETARY CHARACTERISTICS
mounting location
LEFT SIDE
[Ui] rated insulation voltage
600 V - CONFORMING TO UL 508
[Ue] rated operational voltage
48..690 V AC
[Ith] conventional free air thermal current
6 A
protection type
GB2CB... CIRCUIT BREAKER RATING ACCORDING TO OPERATIONAL CURRENT FOR UE <= 415 V
minimum switching current
5 MA
minimum switching voltage
17 V
rated operational power in VA
300 VA AT 48 V AC-15 - ELECTRICAL DURABILITY 100000 CYCLES
rated operational power in W
120 W AT 240 V DC-13 - ELECTRICAL DURABILITY 100000 CYCLES
height
89 MM
width
9.3 MM
depth
66 MM
compatibility code
GVAN
