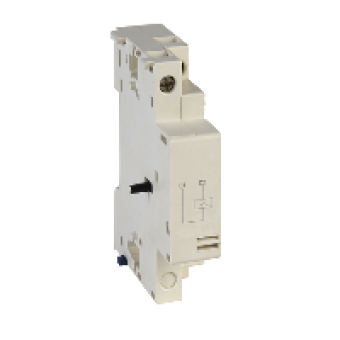

GVAS226 - TeSys GV2 & GV3 - shunt trip - 220...240 V AC 60 Hz, Schneider Electric
- Product Code: GVAS226
- Brand: Schneider Electric
- Availability: To be confirmed
- € 16.54 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS GV2
range
TESYS
device short name
GVAS
product or component type
SHUNT TRIP
device application
CONTROL
COMPLEMETARY CHARACTERISTICS
product compatibility
GV2L
[Uc] control circuit voltage
220..240 V AC 60 HZ
control circuit voltage limits
0.7..1.1 UN
[Ui] rated insulation voltage
600 V AC UL 508
threshold tripping voltage
0.75..0.2 UN
inrush power in VA
14 VA AC
inrush power in W
10.5 W DC
hold-in power consumption in VA
5 VA AC
hold-in power consumption in W
1.6 W DC
operating time
10..15 MS IEC 60947-1
on-load factor
100
connections - terminals
SCREW CLAMP TERMINALS 1 0.75...2.5 MM FLEXIBLE WITHOUT
tightening torque
<= 1.4 N.M SCREW CLAMP TERMINALS
mechanical durability
10000 CYCLES WITH GV3P AND GV3L
quantity per set
SET OF 10
product weight
0.105 KG
compatibility code
GVAS
