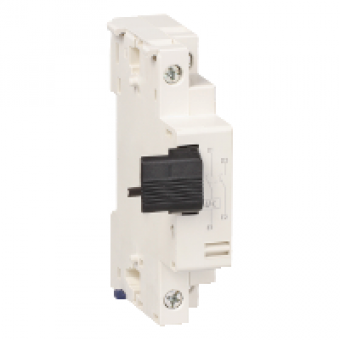

GVAX415 - TeSys GV2 - safety undervoltage trip - 415...440V AC 50 Hz, Schneider Electric
- Product Code: GVAX415
- Brand: Schneider Electric
- Availability: To be confirmed
- € 27.02 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS GV2
range
TESYS
device short name
GVAX
product or component type
SAFETY UNDERVOLTAGE TRIP
COMPLEMETARY CHARACTERISTICS
product compatibility
GV2ME
[Uc] control circuit voltage
415..440 V AC 50 HZ
control circuit voltage limits
0.85..1.1 UN
[Ui] rated insulation voltage
600 V AC UL 508
threshold tripping voltage
0.7..0.35 UN
inrush power in VA
12 VA AC
inrush power in W
8 W DC
hold-in power consumption in VA
3.5 VA AC
hold-in power consumption in W
1.1 W DC
operating time
10..15 MS IEC 60947-1
on-load factor
100
connections - terminals
SCREW CLAMP TERMINALS 1 0.75...2.5 MM FLEXIBLE WITHOUT
tightening torque
<= 1.4 N.M SCREW CLAMP TERMINALS
mechanical durability
10000 CYCLES WITH GV3P AND GV3L
quantity per set
SET OF 10
product weight
0.105 KG
compatibility code
GVAX
