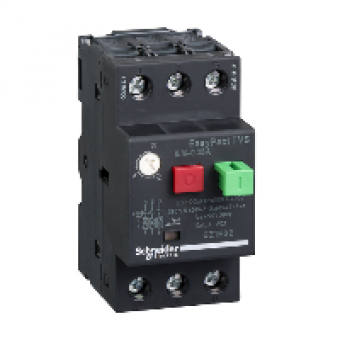

GZ1E02 - motor circuit breaker GZ1 - 3 poles 3d - 0.16..0.25A - thermomagnetic trip unit, Schneider Electric
- Product Code: GZ1E02
- Brand: Schneider Electric
- Availability: To be confirmed
- € 22.67 Ex Tax:
MAIN CHARACTERISTICS
range
EASYPACT
product name
EASYPACT TVS
device short name
GZ1E
product or component type
CIRCUIT BREAKER
device application
MOTOR
trip unit technology
THERMAL-MAGNETIC
suitability for isolation
YES CONFORMING TO IEC 60947-1 APPENDIX 7.1.6
colour
GREY RAL 7011
COMPLEMETARY CHARACTERISTICS
poles description
3P
network type
AC
utilisation category
AC-3
network frequency
5060 HZ CONFORMING TO IEC 60947-2
mounting mode
BY CLIPS
mounting support
RAIL
mounting position
ANY POSITION
breaking capacity
ICU > 100 KA AT 230240 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ics] rated service short-circuit breaking capacity
100 AT 230240 V AC 5060 HZ CONFORMING TO IEC 60947-2
control type
PUSHBUTTON
thermal protection adjustment range
0.16..0.25 A
magnetic tripping current
2.4 A
[Ue] rated operational voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Ui] rated insulation voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-2
power dissipation
2.5 W PER POLE
mechanical durability
100000 CYCLES
electrical durability
100000 CYCLES AC-3
operating rate
25 CYCH
connections - terminals
SCREW CLAMP TERMINALSSAPCE 2 CABLES OF 1...6 MM SOLIDSAPCE
tightening torque
1.7 N.m screw clamp terminals
height
89 MM
width
44.5 MM
depth
78 MM
product weight
0.26 KG
