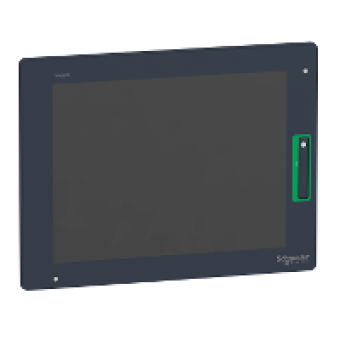

HMIDT643 - 12.1 Touch Smart WLAN Display XGA, Schneider Electric
- Product Code: HMIDT643
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
MAGELIS GTU
product or component type
FLAT SCREEN
terminal type
TOUCHSCREEN DISPLAY
integrated connection type
USB 2.0 TYPE A
COMPLEMETARY CHARACTERISTICS
communication port protocol
WLAN AT 2.4 GHZ
bandwidth
20 MHZ
operating mode
INFRASTRUCTURE
transmission rate
<= 11 MBITS CONFORMING TO IEEE 802.11B
maximum sensing distance
30 M DEPENDING ON SURROUNDING ENVIRONMENT
method of access
CLIENT MODE 1...11 CHANNELS NORTH AMERICA
encryption protocol
AES
network security encrypting
WPA
type of license
10 CLIENTS
function available
BRIGHTNESS SENSOR
[Us] rated supply voltage
12...24 V DC POWER SUPPLY
supply voltage limits
10.8...28.8 V
power consumption in W
23 W
display size
12.1 INCH
display type
COLOUR TFT LCD
display resolution
1024 X 768 PIXELS XGA
display colour
16 MILLION COLOURS
backlight lifespan
50000 HOURS
touch panel
MULTI TOUCH ANALOGUE RESISTIVE
type of installation
INDOOR INSTALLATION
type of cooling
NATURAL CONVECTION
inrush current
30 A
cut-out dimensions
301.5 +1 -0 X 227.5 +1 -0 MM
width
315 MM
height
241 MM
depth
67 MM
product weight
3 KG
The Schneider Electric HMIDT643 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
