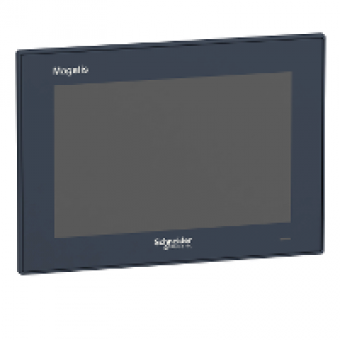

HMIPSOC552D1W01 - S-Panel PC Optimized CFast W10 DC WES, Schneider Electric
- Product Code: HMIPSOC552D1W01
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
MAGELIS IPC
product or component type
MULTI TOUCH SCREEN
number of touch point
5
terminal type
TOUCHSCREEN DISPLAY
data storage equipment
32 GB BACK SIDE CFAST CARD
integrated connection type
1 RS232 - MALE SUB-D 9 RATE <= 115.2 KBITSS
COMPLEMETARY CHARACTERISTICS
processor name
INTEL ATOM E3827 DUAL CORE 1.75 GHZ
chipset type
INTEL ATOM SOC
memory type
4 GB RAM DDR3 INTERNAL
Storage slots
1 CFAST
display size
10.1 INCH
aspect ratio
16 9
display type
LED
display resolution
1280 X 800 PIXELS WSVGA
display colour
267000 COLOURS
luminance
300 CDM
backlight lifespan
50000 HOURS
view angle horizontal x vertical
160 X 160 D
Touch screen resolution
4096 X 4096
touch panel
PJTD CAPACITIVE TECH PCT
video controller type
INTEL HD GRAPHICS
type of cooling
FANLESS
watchdog timer
1...255 MS
operating system
WINDOWS 7 PREMIUM SP1 64 BIT MULTI-LANGUAGE
software package
VIJEO XL ON CONFIGURED OFFER ONLY
[Us] rated supply voltage
24 V DC +- 20
[In] rated current
1.9 A
local signalling
BUZZER
width
283.1 MM
height
202.3 MM
depth
61.3 MM
cut-out dimensions
274.6+ - 0.7X193.8+ - 0.4
product weight
2.5 KG
main type
OPTIMUM
The Schneider Electric HMIPSOC552D1W01 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
