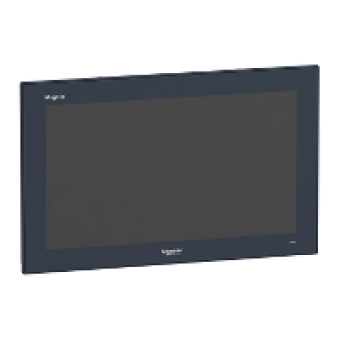

HMIPSPS952D1701 - S-Panel PC Performance SSD W19 DC Windows 7, Schneider Electric
- Product Code: HMIPSPS952D1701
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
MAGELIS IPC
product or component type
MULTI TOUCH SCREEN
number of touch point
5
terminal type
TOUCHSCREEN DISPLAY
data storage equipment
80 GB BACK SIDE SSD 1500000 H MTBF
integrated connection type
1 RS232 - MALE SUB-D 9 RATE <= 115.2 KBITSS
COMPLEMETARY CHARACTERISTICS
processor name
INTEL CORE I3 4010U 1.7 GHZ
chipset type
INTEL QM87
memory type
8 GB RAM DDR3 INTERNAL
Storage slots
1 INTERNAL SATA HDDSSD
display size
18.5 INCH
aspect ratio
16 9
display type
LED
display resolution
1366 X 768 PIXELS WXGA
display colour
16777216 COLORS
luminance
300 CDM
backlight lifespan
50000 HOURS
view angle horizontal x vertical
150 X 140 D
Touch screen resolution
4096 X 4096
touch panel
PJTD CAPACITIVE TECH PCT
video controller type
INTEL HD GRAPHICS 4400
type of cooling
FANLESS
watchdog timer
1...255 MS
electrical connection
3 SMA CONNECTOR
number of slots
1 MINI PCI EXPRESS FULL-SIZE
operating system
WINDOWS 10 IOT ENTERPRISE 64 BIT MULTI-LANGUAGE
software package
VIJEO XL ON CONFIGURED OFFER ONLY
[Us] rated supply voltage
24 V DC +- 20
power consumption in W
18...60 W
local signalling
BUZZER
width
488 MM
height
309 MM
depth
56.7 MM
cut-out dimensions
479.3+ - 1 X 300.3+ - 0.7
product weight
7 KG
main type
PERFORMANCE
