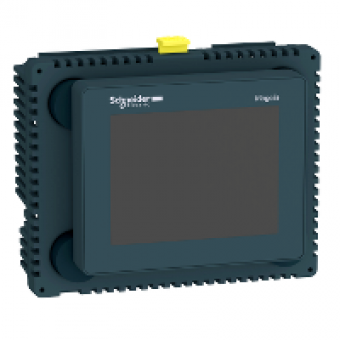

HMISCU6B5 - 3”5 color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out, Schneider Electric
- Product Code: HMISCU6B5
- Brand: Schneider Electric
- Availability: To be confirmed
- € 616.03 Ex Tax:
MAIN CHARACTERISTICS
range of product
MAGELIS SCU
product or component type
SMALL TOUCH HMI CONTROLLER
display size
3.5 INCH
display type
WITH BACKLIT LED COLOUR TFT LCD
touch panel
ANALOGUE
device presentation
COMPLETE PRODUCT
COMPLEMETARY CHARACTERISTICS
display resolution
320 X 240 PIXELS QVGA
backlight lifespan
50000 HOURS WITH 65000 COLOURS
brightness
16 LEVELS VIA TOUCH PANEL
view angle horiz x vert
60 LEFT
character font
ASCII
supply
EXTERNAL SOURCE
[Us] rated supply voltage
24 V AT 20.4...28.8 V DC
immunity to microbreaks
<= 10 MS
inrush current
<= 30 A
power consumption in W
15 W
local signalling
NO INDICATOR
number of pages
LIMITED BY INT MEMORY CAPACITY
software designation
SOMACHINE
operating system
MAGELIS
processor name
CPU RISC
processor frequency
333 MHZ
memory description
128 MB FLASH MEMORY TYPE NAND
integrated connection type
1 RJ45 CONNECTOR SERIAL LINK WITH RS232 RS485 INTERFACE AT <= 115.2 KBITS S
realtime clock
BUILT-IN
downloadable protocols
MODBUS
fixing mode
BY 1 NUT - DIAMETER 22 MM MOUNTING ON 1...6 MM THICK PANEL
enclosure material
PC PBT
shock resistance
147 MS DURATION=11 MS CONFORMING TO IEC 60068-2-27 ON DIN RAIL
vibration resistance
+- 3.5 MM F=5...9 HZ CONFORMING TO IEC 60068-2-6
electromagnetic compatibility
ELECTROSTATIC DISCHARGE IMMUNITY TEST - TEST LEVEL 8 KV AIR DISCHARGE CONFORMING TO IEC 61000-4-2
discrete input number
2 FOR FAST INPUT NORMAL MODE CONFORMING TO IEC 61131-2 TYPE 1
discrete input voltage
24 V DC DISCRETE INPUT LOGICSINK OR SOURCE POSITIVENEGATIVE
number of common point
1 FOR FAST INPUT HSC MODE
discrete input current
7.83 MA FOR FAST INPUT
input impedance
4.7 KOHM
sensor power supply
15...28.8 V DC VOLTAGE STATE 1 >= 15 V CURRENT STATE 1 >= 5 MA VOLTAGE STATE 0 <= 5 V CURRENT STATE 0 <= 1.5 MA
configurable filtering time
0 MS NO FILTER NONE
input frequency
100 KHZ FOR FAST INPUT ENCODER MODE - CONTROL TYPE AB
max cable distance between devices
SHIELDED CABLE 10 M FOR FAST INPUT
connection pitch
3.5 MM
overvoltage protection
WITH
isolation between channels and internal logic
500 V DC
isolation between channels
NONE
discrete output number
2 FAST OUTPUT NORMAL MODE OUTPUT LOGIC SOURCE
discrete output voltage
24 V DC VOLTAGE LIMIT 19.2...28.8 V WITH TRANSISTOR DISCRETE OUTPUTS
input/output number
2 FOR FAST INPUT TERMINALS FI0...FI1
discrete output current
2 A CURRENT PER OUTPUT COMMON4 A RESPONSE TIME 5 MS WITH OPENING CONTACT FOR DIGITAL OUTPUT
insulation resistance
> 10 MOHM BETWEEN THE IO AND INTERNAL LOGIC
output frequency
<= 100 KHZ FOR FAST OUTPUT PTO MODE
absolute accuracy error
+- 0.1 OF FULL SCALE OF CYCLIC RATIO 1...99 FOR FAST OUTPUT PWM OR PTO MODE
analogue input number
2 FOR ANALOG INPUT
analogue input range
0...20 MA4...20 MA - RESOLUTION 12 BITS INPUT IMPEDANCE 250 OHM TOLERANCE +- 1
analogue input type
RTD AT - 200...600 C - RESOLUTION 16 BITS TEMPERATURE PROBE PT 100PT 1000
analogue output number
2 RESISTIVE LOAD FOR 12 BITS + SIGN
analogue output range
0...20 MA4...20 MA > 300 OHM FOR OPEN-CIRCUIT
height
74.95 MM
width
128 MM
depth
102 MM
product weight
0.551 KG
