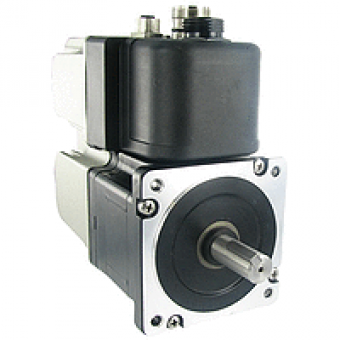

ILP5R853MC1A - integrated drive ILP with 2-phase stepper motor - 230 AC - RS485 - 4.79 N.m, Schneider Electric
- Product Code: ILP5R853MC1A
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
LEXIUM INTEGRATED DRIVE
product or component type
MOTION INTEGRATED DRIVE
device short name
ILP
motor type
2-PHASE STEPPER MOTOR
network type
AC
electrical connection
INDUSTRIAL CONNECTOR
[Us] rated supply voltage
230 V
length
214.3 MM
winding type
M SPEED OF ROTATION + M TORQUE
gear box type
WITHOUT
nominal speed
800 RPM AT 230 V
holding torque
4.79 N.M
COMPLEMETARY CHARACTERISTICS
communication interface
RS485
transmission rate
4.8 9.6..38.4+115 KBAUDS
mounting support
FLANGE
motor flange size
85 MM
feedback type
INDEX PULSE
holding brake
WITHOUT
supply voltage limits
95...264 V
current consumption
2.1 A MAXIMUM CONTINUOUS
input/output type
11 SIGLS USED AS I P OR O P
voltage state 0 guaranteed
<= 0.8 V
voltage state 1 guaranteed
>= 2.2 V
discrete input current
1.75 MA AT 24 V FOR 24 V SIGNAL INTERFACE
maximum switching current
275 MA FOUR CHANNELS
protection type
OVERLOAD OF OUTPUT VOLTAGE
peak stall torque
4.79 N.M
continuous stall torque
4.79 N.M
speed feedback resolution
1000 STEPS
accuracy error
+ - 0.3 ARC MIN
rotor inertia
3.4 KG.CM
service life in hours
20000 H
marking
CE
product weight
5 KG
compatibility code
ILP
