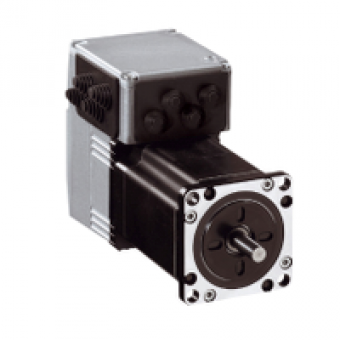

ILS2T572PB1A0 - integrated drive ILS with stepper motor - 24..48 V - Modbus TCP - 3.5 A, Schneider Electric
- Product Code: ILS2T572PB1A0
- Brand: Schneider Electric
- Availability: To be confirmed
- € 767.39 Ex Tax:
MAIN CHARACTERISTICS
range of product
LEXIUM INTEGRATED DRIVE
product or component type
MOTION INTEGRATED DRIVE
device short name
ILS
motor type
3-PHASE STEPPER MOTOR
number of motor poles
6
network number of phases
SINGLE PHASE
[Us] rated supply voltage
24 V
network type
DC
communication interface
INTEGRATED MODBUS TCP
length
115.9 MM
winding type
M SPEED OF ROTATION + M TORQUE
electrical connection
PRINTED CIRCUIT BOARD CONN
holding brake
WITHOUT
gear box type
WITHOUT
nominal speed
1000 RPM AT 48 V
nominal torque
0.9 N.M
holding torque
0.9 N.M
COMPLEMETARY CHARACTERISTICS
transmission rate
10 100 MBITS
mounting support
FLANGE
motor flange size
57 MM
number of motor stacks
2
centring collar diameter
38.1 MM
centring collar depth
1.6 MM
number of mounting holes
4
mounting holes diameter
5.2 MM
circle diameter of the mounting holes
66.6 MM
feedback type
INDEX PULSE
shaft end
UNTAPPED
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
6.35 MM
shaft length
21 MM
supply voltage limits
18...55 V
current consumption
3500 MA MAXIMUM CONTINUOUS
associated fuse rating
16 A
commissioning interface
RS485 MODBUS TCP 9.6 19.2 AND 38.4 KBAUDS
input/output type
4 SIGNALS EACHUSED AS I P O P
voltage state 0 guaranteed
-3...4.5 V
voltage state 1 guaranteed
15...30 V
discrete input current
10 MA AT 24 V FOR SAFETY INPUT
discrete output voltage
23...25 V
maximum switching current
100 MA PER OUTPUT
protection type
OVERLOAD OF OUTPUT VOLTAGE
peak stall torque
0.9 N.m
continuous stall torque
0.9 N.M
speed feedback resolution
20000 POINTSTURN
accuracy error
+ - 6 ARC MIN
rotor inertia
0.22 KG.CM
maximum mechanical speed
3000 RPM
maximum radial force Fr
24 N
maximum axial force Fa
100 N TENSILE FORCE
service life in hours
20000 h of bearing :
marking
CE
type of cooling
NATURAL CONVECTION
product weight
1.6 KG
sizing reference
ILS2 572P
supply voltage description
SINGLE PHASE 24 V DC
network number of phases
1
voltage 1
24 V
voltage 1 speed 1
526.126 RPM
voltage 1 speed 1 max
526.126 RPM
coefficient 1_0
-4.471 N.M
coefficient 1_1
8.219 N.MRPM
coefficient 1_2
-3.429 N.MRPM
coefficient 1_3
0.416 N.MRPM3
voltage 2
48 V
voltage 2 speed 2
1085.796 RPM
voltage 2 speed 2 max
1085.796 RPM
coefficient 2_0
-31.753 N.M
coefficient 2_1
36.407 N.MRPM
coefficient 2_2
-12.831 N.MRPM
coefficient 2_3
1.443 N.MRPM3
curve type
SEMILOG
accuracy error [angular]
0.1
compatibility code
ILS
