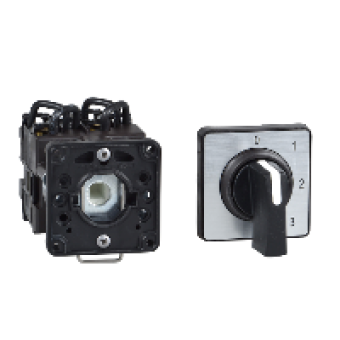

K1B006TCH - cam changeover switch - 1 pole - 30° - 12 A - for Ø 22 mm, Schneider Electric
- Product Code: K1B006TCH
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY K
product or component type
COMPLETE CAM SWITCH
component name
K1
[Ith] conventional free air thermal current
12 A
product mounting
FRONT MOUNTING
fixing mode
DM 22 MM HOLE
cam switch head type
WITH FRONT PLATE 45 X 45 MM
type of operator
BLACK HANDLE LENGTH = 35 MM
rotary handle padlocking
WITHOUT
presentation of legend
WITH METALLIC LEGEND 2 - 0 - 1 BLACK MARKING
cam switch function
REVERSING SWITCH
return
SP RETURN FROM 315 D TO 0 D
off position
WITH
poles description
1P
switching positions
LEFT 0 D - 315 D
IP degree of protection
IP65 CONFORMING TO IEC 529
COMPLEMETARY CHARACTERISTICS
switching angle
45
[Ui] rated insulation voltage
690 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Ithe] conventional enclosed thermal current
10 A
rated operational power in W
10500 W AC-21 / 500...660 V 3 phases conforming to IEC 60947-3
[Ie] rated operational current AC
1.8 A AT 690 V AC-3 3 PHASES CONFORMING TO IEC 60947-3
electrical durability
1000000 CYCLES AC-15
operating rate
2.5 CYCMN AC-21
short-circuit current
10000 A
short-circuit protection
16 A BY CARTRIDGE FUSE TYPE GG
[Uimp] rated impulse withstand voltage
4 KV IN ISOLATING FUNCTION
contact operation
SLOW-BREAK
positive opening
WITH
electrical connection
CAPTIVE SCREW CLAMP TERMINALS FLEXIBLE 2 X 1.5 MM
mechanical durability
1000000 CYCLES
CAD overall width
45 MM
CAD overall height
50 MM
CAD overall depth
49 MM
product weight
0.135 KG
compatibility code
K1B
