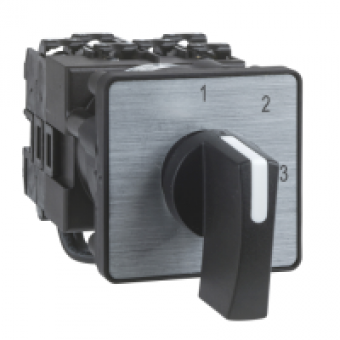

• K1F003MLH - cam ammeter switch - 3 circuits - 90° - 12 A - screw mounting, Schneider Electric

K1F003MLH - cam ammeter switch - 3 circuits - 90° - 12 A - screw mounting, Schneider Electric

  • € 13.58 Ex Tax:

MAIN CHARACTERISTICS
range of product
HARMONY K
product or component type
COMPLETE CAM SWITCH
component name
K1
[Ith] conventional free air thermal current
12 A
product mounting
FRONT MOUNTING
fixing mode
MULTIFIXING
cam switch head type
WITH FRONT PLATE 45 X 45 MM
type of operator
BLACK HANDLE LENGTH = 35 MM
rotary handle padlocking
WITHOUT
presentation of legend
WITH METALLIC LEGEND 0 - L1 - L2 - L3 BLACK MARKING
cam switch function
AMMETER SWITCH
return
WITHOUT
type of measurement
FOR 3 CIRCUITS
off position
WITH
switching positions
RIGHT 0 D -90 D -180 D -270 D
IP degree of protection
IP40 CONFORMING TO IEC 529
COMPLEMETARY CHARACTERISTICS
switching angle
90
[Ui] rated insulation voltage
690 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Ithe] conventional enclosed thermal current
10 A
rated operational power in W
10500 W AC-21 / 500...660 V 3 phases conforming to IEC 60947-3
[Ie] rated operational current AC
1 A AT 500 V AC-15 CONFORMING TO IEC 60947-5-1
electrical durability
1000000 CYCLES AC-15
operating rate
2.5 CYCMN AC-21
short-circuit current
10000 A
short-circuit protection
16 A BY CARTRIDGE FUSE TYPE GG
[Uimp] rated impulse withstand voltage
4 KV IN ISOLATING FUNCTION
contact operation
SLOW-BREAK
positive opening
WITH
electrical connection
CAPTIVE SCREW CLAMP TERMINALS FLEXIBLE 2 X 1.5 MM
mechanical durability
1000000 CYCLES
CAD overall width
45 MM
CAD overall height
45 MM
CAD overall depth
97 MM
product weight
0.17 KG
compatibility code
K1F
