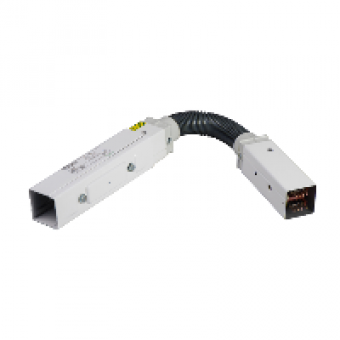

KBB40DF4420TW - Canalis - flexible length - 40 A - 2 m - 2 circuit - DALI compatible - white, Schneider Electric
- Product Code: KBB40DF4420TW
- Brand: Schneider Electric
- Availability: To be confirmed
- € 281.75 Ex Tax:
MAIN CHARACTERISTICS
range
CANALIS
range of product
CANALIS
product or component type
BUSBAR TRUNKING
busbar description
FLEXIBLE LENGTH
device short name
KBB
product compatibility
KBB
direction change type
3 DIMENSIONS
[Ie] rated operational current
40 A AT 35 DC
COMPLEMETARY CHARACTERISTICS
device application
LIGHTING
thermal stress limit
900 KA.S
radiated magnetic field
2 PT
[Ue] rated operational voltage
230..400 V
[Uimp] rated impulse withstand voltage
4 KV
[Ui] rated insulation voltage
690 V
[Icw] rated short-time withstand current
0.94 KA
[Ipk] rated peak withstand current
9.6 KA
THDI
40 A AT 0...15
network frequency
50 60 HZ
control type
COMMUNICATING
number of circuits
2
mounting mode
BY CLIPS
standards
IEC 60439-2
width
2.14 M
depth
51 MM
height
60 MM
length
2 M
colour
RAL 9003 WHITE
product weight
1.9 KG
The Schneider Electric KBB40DF4420TW is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
