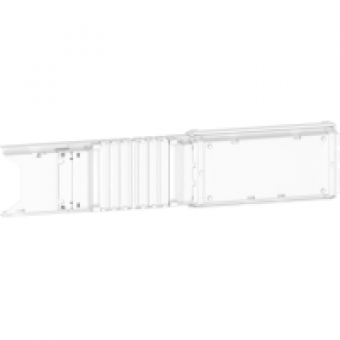

KNA160DL4 - Canalis - flexible elbow - 160 A - 2D - internal/external 80 to 180° angle, Schneider Electric
- Product Code: KNA160DL4
- Brand: Schneider Electric
- Availability: To be confirmed
- € 230.27 Ex Tax:
MAIN CHARACTERISTICS
range
CANALIS
range of product
CANALIS
product name
KN
product or component type
ELBOW
busbar description
FLEXIBLE ELBOW
device short name
KNA
product compatibility
KN
direction change type
2 DIMENSIONS
[Ie] rated operational current
160 A AT 35 DC
COMPLEMETARY CHARACTERISTICS
device application
LOW POWER DISTRIBUTION
thermal stress limit
8000 KA.S
radiated magnetic field
186 PT
[Ue] rated operational voltage
230..500 V
[Uimp] rated impulse withstand voltage
6 KV
[Ui] rated insulation voltage
500 V
[Icw] rated short-time withstand current
2.8 KA
[Ipk] rated peak withstand current
20 KA
THDI
160 A AT 0...15
network frequency
50 60 HZ
control type
WITHOUT
number of circuits
1
mounting mode
BY SCREWS
standards
IEC 60439-2
operating angle
80...180
length
355 MM
colour
RAL 9001 WHITE
product weight
1.5 KG
