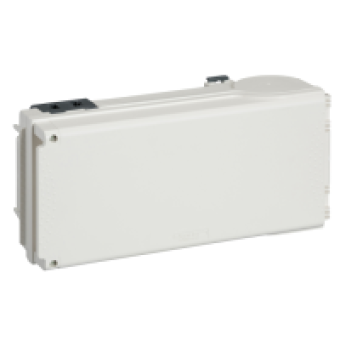

KNB32SG4 - Canalis - tap-off unit with isolator for BS88 fuse size A1 - 32A - 3L+N+PE, Schneider Electric
- Product Code: KNB32SG4
- Brand: Schneider Electric
- Availability: To be confirmed
- € 118.28 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
range compatibility
CANALIS KN
product or component type
TAP-OFF UNIT
busbar trunking compatibility
CANALIS KN BUSBAR TRUNKING WITH PLUG-IN OUTLETS
[Ie] rated operational current
32 A AT 35 C
protection type
FUSE ISOLATOR FOR BS88 FUSE SIZE A1 - CONFORMING TO BS STANDARD
provided equipment
FUSE TO BE ORDERED SEPARATELY
mounting mode
PLUG-IN WITH FIXED POLARITY
tap-off unit polarity
3L+N+PE
COMPLEMETARY CHARACTERISTICS
function available
FUSE ISOLATOR
device application
LOW POWER DISTRIBUTION
[Ue] rated operational voltage
230...500 V DEPENDING ON PROTECTIVE DEVICE
[Uimp] rated impulse withstand voltage
4.6 KV
[Ui] rated insulation voltage
500 V DEPENDING ON PROTECTIVE DEVICE
network frequency
50 60 HZ
electrical connection
CABLE CLAMP TERMINAL - ISO50 - CABLE 10 MM FLEXIBLE
door/cover opening side
RIGHT
tap-off unit disconnection mode
BY OPENING THE DOOR
standards
IEC 61439-1
colour
WHITE RAL 9001
width
344 MM
depth
101 MM
depth (door open)
432.5 MM
height
165 MM
product weight
1.5 KG
