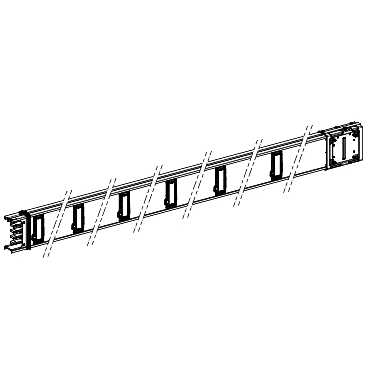

KSA160ED43012 - Canalis - straight length - 160A - 12 tap-off outlets - 3L+N+PE - 3m - white, Schneider Electric
- Product Code: KSA160ED43012
- Brand: Schneider Electric
- Availability: To be confirmed
- € 297.60 Ex Tax:
MAIN CHARACTERISTICS
range of product
CANALIS
range
CANALIS
product name
KS
product or component type
BUSBAR TRUNKING
busbar description
DISTRIBUTION LENGTH
device short name
KSA
BAR MATERIAL
ALUMINIUM
device application
MEDIUM POWER DISTRIBUTION
[Ie] rated operational current
160 A 35 °C
busbar trunking polarity
3L+N+PE
number of tap-off outlets
12
length
3 M
COMPLEMETARY CHARACTERISTICS
[Ue] rated operational voltage
230..690 V
network frequency
50 60 HZ
[Uimp] rated impulse withstand voltage
8 KV
[Ui] rated insulation voltage
690 V
[Icw] rated short-time withstand current
4.45 KA
[Ipk] rated peak withstand current
22 KA
electrical connection
LUBRICATED SLIDING CONTACT
radiated magnetic field
0.31 T
thermal stress limit
20.2 KA.S
THDI
0..15 160 A
voltage drop
0.067 V 1 50 HZ WITH 1A FOR 100 M LONG
linear resistance
X1 0.15 MOM 35 C AT INC L 5060 HZ
mounting mode
BY SCREWS
neutral position
UP
standards
IEC 60439-2
dimension type
FIX
width
146 MM
depth
54 MM
colour
RAL 9001 : white
product weight
13.4 KG
