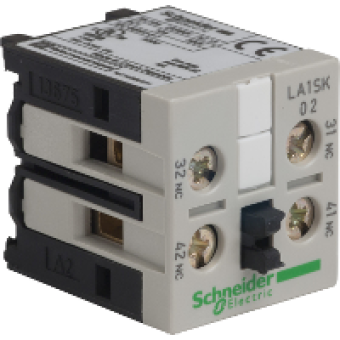

LA1SK02 - TeSys SK - auxiliary contact block - 2 NC , Schneider Electric
- Product Code: LA1SK02
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3.41 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS SK
range
TESYS
device short name
LA1SK
product or component type
AUXILIARY CONTACT BLOCK
product compatibility
LC1SK
auxiliary contacts operation
INSTANTANEOUS
pole contact composition
2 NC
connections - terminals
SCREW CLAMP TERMINALS 1 CABLE 1.5...6 MM - CABLE STIFFNESS SOLID
COMPLEMETARY CHARACTERISTICS
mounting location
FRONT SIDE
[Ui] rated insulation voltage
690 V - CONFORMING TO IEC 60947
[Ue] rated operational voltage
690 V AC <= 400 HZ
[Ith] conventional free air thermal current
10 A AT <= 55 DC
associated fuse rating
IEC 60947
tightening torque
0.8 N.M - ON SCREW CLAMP TERMINALS
width
27 MM
product weight
0.022 KG
compatibility code
LA1SK
