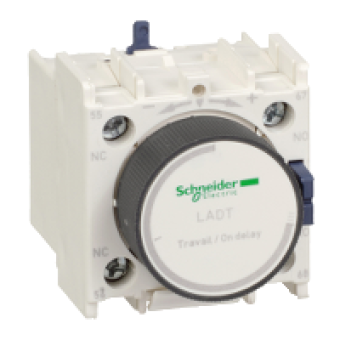

LADT4 - TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals, Schneider Electric
- Product Code: LADT4
- Brand: Schneider Electric
- Availability: To be confirmed
- € 32.83 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product or component type
TIME DELAY AUX CONT BLOCK
pole contact composition
1 NO + 1 NC
Shielding continuity terminal
WITHOUT
connections - terminals
SCREW CLAMP TERMINALS 1 CABLE 1...2.5 MM - CABLE STIFFNESS FLEXIBLE - WITH CABLE END
COMPLEMETARY CHARACTERISTICS
mounting location
FRONT
[Ui] rated insulation voltage
600 V - CERTIFICATIONS UL
[Ue] rated operational voltage
690 V AC 25..400 HZ
[Ith] conventional free air thermal current
10 A AT <= 60 DC
Irms rated making capacity
140 A AT <= 690 V AC CONFORMING TO IEC 60947-5-1
permissible short-time rating
100 A AT 60 C 1 S
protection type
GG FUSE <= 10 A RATING ACCORDING TO OPERATIONAL CURRENT FOR UE <= 690 V
associated fuse rating
10 A gG IEC 60947-5-1
mechanical durability
5 MCYCLES
minimum switching current
5 MA
minimum switching voltage
17 V
non-overlap time
1.5 MS ON DE-ENERGISATION NO OVERLAP BETWEEN NC AND NO CONTACT
timer type
ON DELAY
time delay range
10...180 S
insulation resistance
> 10 MOHM
