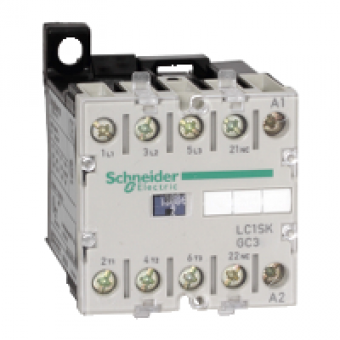

LC1SKGC301P7 - TeSys SK mini contactor - 3P (3 NO) - AC-3 - 690 V 9 A - 230 V AC coil, Schneider Electric
- Product Code: LC1SKGC301P7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 20.56 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS SK
range
TESYS
product name
TESYS SK
product or component type
MINI CONTACTOR
device short name
LC1SKGC
contactor application
MOTOR CONTROL
utilisation category
AC-1
power pole contact composition
3P
pole contact composition
3 NO
[Ue] rated operational voltage
690 V AC 5060 HZ FOR POWER CIRCUIT
[Ie] rated operational current
20 A <= 50 DC AC AC-1
motor power kW
4 KW AT 380..415 V AC 5060 HZ
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
230 V AC 5060 HZ
auxiliary contact composition
1 NC
[Ith] conventional free air thermal current
20 A AT <= 55 C FOR POWER CIRCUIT
Irms rated making capacity
85 A AC CONFORMING TO NF C 63-110
rated breaking capacity
68 A AT <= 400 V CONFORMING TO NF C 63-110
[Icw] rated short-time withstand current
60 A <= 55 DC POWER CIRCUIT
associated fuse rating
20 A GI AT <= 440 V FOR POWER CIRCUIT
average impedance
4 MOHM AT 50 HZ - ITH 20 A FOR POWER CIRCUIT
[Ui] rated insulation voltage
690 V FOR POWER CIRCUIT CONFORMING TO BS 5424
mounting support
PANEL
standards
BS 5424
product certifications
CULUS
connections - terminals
CONNECTOR 1 CABLES 1.5...6 MM - CABLE STIFFNESS SOLID
tightening torque
power circuit : 0.8 N.m - on connector - with screwdriver pozidriv No 1
operating time
6...8 MS COIL DE-ENERGISATION AND NO OPENING
mechanical durability
10 MCYCLES
operating rate
1200 CYCH
COMPLEMETARY CHARACTERISTICS
control circuit voltage limits
0.85...1.1 UC AT <= 55 C OPERATIONAL 5060 HZ
inrush power in VA
23 VA AT 20 DC 5060 HZ
hold-in power consumption in VA
4.9 VA AT 20 DC 5060 HZ
heat dissipation
1.5 W AT 5060 HZ
signalling circuit frequency
<= 400 HZ
compatibility code
LC1SKGC
