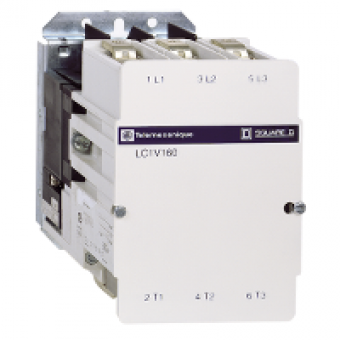

LC1V160FE7 - vacuum contactor LC1-V - 3P - 160 A AC-3 - coil 110..120 V AC, Schneider Electric
- Product Code: LC1V160FE7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS V
range
TESYS
product name
TESYS V
product or component type
VACUUM CONTACTOR
device short name
LC1V
contactor application
MOTOR CONTROL
utilisation category
AC-1
control circuit type
AC
coil type
STANDARD
poles description
3P
pole contact composition
3 NO
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILTIN BIDIR PK LMTG SPSR
[Ie] rated operational current
160 A <= 40 C AC AC-1 FOR POWER CIRCUIT
motor power kW
110 KW AT 525 V AC 5060 HZ
motor power hp
100 HP AT 380 V AC 5060 HZ CONFORMING TO CSA
auxiliary contact composition
2 NO + 1 NC
[Uc] control circuit voltage
110..120 V AC 5060 HZ
control circuit voltage limits
0.8..1.1 UC 5060 HZ
[Ui] rated insulation voltage
1500 V FOR POWER CIRCUIT
[Uimp] rated impulse withstand voltage
8 KV
mounting support
PLATE
connections - terminals
control circuit : connector 1 cable 2.5 mm²
tightening torque
power circuit : 14 N.m - on connector - cable 70 mm² hexagonal
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ FOR POWER CIRCUIT
[Ith] conventional free air thermal current
10 A FOR CONTROL CIRCUIT
Irms rated making capacity
1900 A AT 1500 V AC FOR POWER CIRCUIT CONFORMING TO IEC 60947
rated breaking capacity
1600 A AT 1500 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
associated fuse rating
10 A GG FOR CONTROL CIRCUIT
inrush power in VA
300 VA
hold-in power consumption in VA
30 VA
operating time
18..22 MS ON CLOSING
mechanical durability
5000000 CYCLES
operating rate
1200 CYCH
rated operational power in W
130000 W AT 400 V AC-4
height
168 MM
width
123 MM
depth
151 MM
product weight
3.8 KG
compatibility code
LC1V
