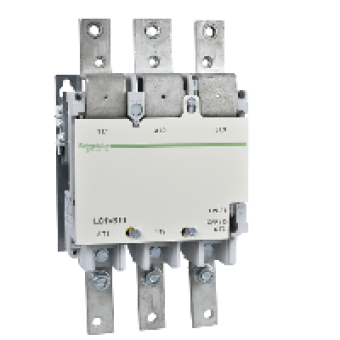

LC1V610P7 - vacuum contactor LC1-V - 3P - 610 A AC-3 - coil 220..240 V AC, Schneider Electric
- Product Code: LC1V610P7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS V
range
TESYS
product name
TESYS V
product or component type
VACUUM CONTACTOR
device short name
LC1V
contactor application
MOTOR CONTROL
utilisation category
AC-1
control circuit type
AC
coil type
STANDARD
poles description
3P
pole contact composition
3 NO
COMPLEMETARY CHARACTERISTICS
coil technology
W O BUILTIN BIDIR PK LMTG SPSR
[Ie] rated operational current
610 A <= 55 C AC AC-3 FOR POWER CIRCUIT
motor power kW
160 KW AT 230 V AC 5060 HZ AC-3
motor power hp
1000 HP AT 1000 V AC 5060 HZ CONFORMING TO CSA
auxiliary contact composition
1 NO + 1 NC
[Uc] control circuit voltage
220..240 V AC 5060 HZ
control circuit voltage limits
0.8..1.1 UC 5060 HZ
[Ui] rated insulation voltage
1500 V FOR POWER CIRCUIT
[Uimp] rated impulse withstand voltage
8 KV
mounting support
PLATE
connections - terminals
control circuit : connector 1 cable 2.5 mm²
tightening torque
power circuit : 39 N.m - on connector - cable 185 mm² hexagonal
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ FOR POWER CIRCUIT
[Ith] conventional free air thermal current
10 A FOR CONTROL CIRCUIT
Irms rated making capacity
7300 A AT 1500 V AC FOR POWER CIRCUIT CONFORMING TO IEC 60947
rated breaking capacity
6100 A AT 1500 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
associated fuse rating
10 A GG FOR CONTROL CIRCUIT
inrush power in VA
1700 VA
hold-in power consumption in VA
28 VA
operating time
24..32 MS ON CLOSING
mechanical durability
2000000 CYCLES
operating rate
1200 CYCH
height
356 MM
width
201 MM
depth
178 MM
product weight
13 KG
compatibility code
LC1V
