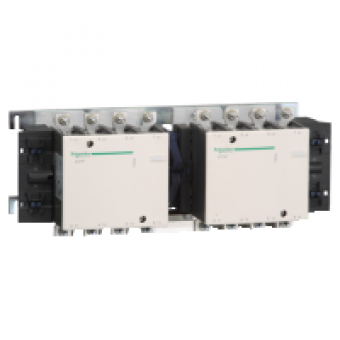

LC2F1504 - TeSys F changeover contactor - 4P(4 NO) AC-1 <= 440 V 250 A - without coil, Schneider Electric
- Product Code: LC2F1504
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product name
TESYS F
product or component type
CHANGEOVER CONTACTOR
device short name
LC2F
contactor application
RESISTIVE LOAD
utilisation category
AC-1
device presentation
PREASSEMBLED W RVSNG POWER BSB
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
250 A <= 40 C AT <= 440 V AC AC-1
auxiliary contact composition
1 NO
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
250 A AT <= 40 DC
Irms rated making capacity
1500 A AC CONFORMING TO IEC 60947-4-1
rated breaking capacity
1200 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
1200 A <= 40 DC 10 S
associated fuse rating
160 A AM AT <= 440 V
average impedance
0.35 MOHM AT 50 HZ - ITH 250 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
22 W AC-1
interlocking type
MECHANICAL
mounting support
PLATE
standards
EN 60947-1
product certifications
ABS
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
tightening torque
control circuit : 1.2 N.m
COMPLEMETARY CHARACTERISTICS
compatibility code
LC2F
