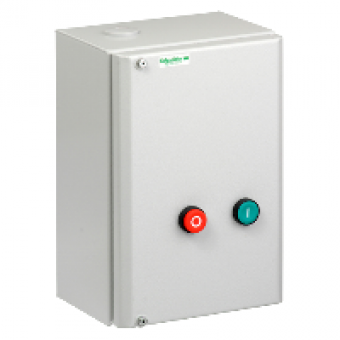

LE1D40AP7 - TeSys LE - enclosed DOL starter - 40 A - 230 V AC coil, Schneider Electric
- Product Code: LE1D40AP7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 210.22 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS LE
device short name
LE1D
product or component type
ENCLOSED DOL STARTER
device application
STANDARD
utilisation category
AC-3
device composition
thermal overload relay to be ordered separately
control type
push-button start green I
COMPLEMETARY CHARACTERISTICS
[Ie] rated operational current
40 A AC-3
motor power kW
11 KW AT 220230 V AC 5060 HZ
[Ithe] conventional enclosed thermal current
40 A
[Uc] control circuit voltage
230 V AC 5060 HZ
cable entry number
1 CABLE ENTRY ISO32 TOP
width
200 MM
height
300 MM
depth
158.4 MM
product weight
4.82 KG
compatibility code
LE1D
The Schneider Electric LE1D40AP7 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
