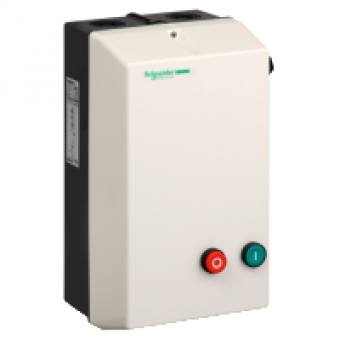

LE4D09V7 - TeSys LE - enclosed DOL starter - 9 A - 400 V AC coil, Schneider Electric
- Product Code: LE4D09V7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS LE
device short name
LE4D
product or component type
ENCLOSED DOL STARTER
device application
STANDARD
material
POLYCARBONATE
utilisation category
AC-3
device composition
THERMAL OVERLOAD RELAY ORDERED SEPARATELY
[Ie] rated operational current
9 A AC-3
motor power kW
4 KW AT 380400 V AC 5060 HZ
[Uc] control circuit voltage
400 V AC 5060 HZ
[Ithe] conventional enclosed thermal current
9 A
associated fuse rating
12 A 10 X 38 MM AM
control type
push-button start green I
COMPLEMETARY CHARACTERISTICS
cable entry number
2 cable entry : ISO20 top
width
186 MM
height
330 MM
depth
175.5 MM
product weight
1.96 KG
compatibility code
LE4D
