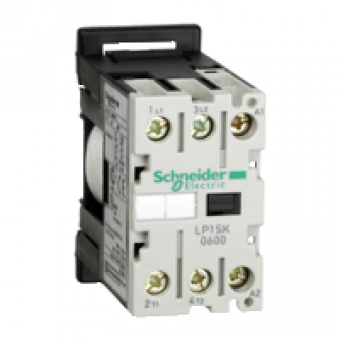

LP1SK0600BD - TeSys SK - mini contactor - 2P (2 NO) - AC-1 - 690 V 12 A - 24 V DC coil, Schneider Electric
- Product Code: LP1SK0600BD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 21.51 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS SK
product or component type
MINI CONTACTOR
device short name
LP1SK
contactor application
RESISTIVE LOAD
utilisation category
AC-1
power pole contact composition
2P
pole contact composition
2 NO
[Ue] rated operational voltage
690 V AC 5060 HZ FOR POWER CIRCUIT
[Ie] rated operational current
12 A <= 55 DC AC AC-1
control circuit type
DC STANDARD
[Uc] control circuit voltage
24 V DC
[Ith] conventional free air thermal current
12 A AT <= 55 C FOR POWER CIRCUIT
Irms rated making capacity
66 A AT 690 V AC CONFORMING TO IEC 60947
rated breaking capacity
52 A AT <= 400 V FOR POWER CIRCUIT CONFORMING TO NF C 63-110
[Icw] rated short-time withstand current
50 A <= 55 DC POWER CIRCUIT
associated fuse rating
16 A GI AT <= 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
average impedance
4 MOHM AT 50 HZ - ITH 12 A
[Ui] rated insulation voltage
690 V CONFORMING TO IEC 60947
mounting support
RAIL
standards
BS 5424
product certifications
CSA
connections - terminals
power circuit : connector 1 cable(s) 0.35...6 mm² - cable stiffness: flexible - with cable end
tightening torque
0.8 N.M - ON CONNECTOR - WITH SCREWDRIVER POZIDRIV NO 1
operating time
4...6 MS COIL DE-ENERGISATION AND NO OPENING
mechanical durability
10 MCYCLES
operating rate
1200 CYCH
COMPLEMETARY CHARACTERISTICS
control circuit voltage limits
0.85...1.1 UC AT <= 50 C OPERATIONAL
inrush power in W
2.2 W AT 20 DC
hold-in power consumption in W
2.2 W AT 20 DC
heat dissipation
2.2 W
compatibility code
LP1SK
