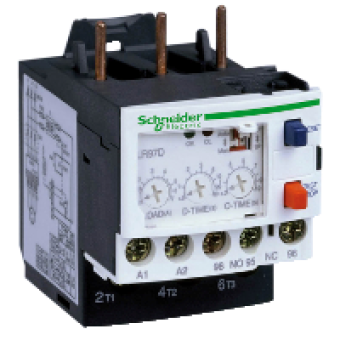

LR97D015E - electronic overload relay for motor TeSys - 0.3...1.5 A - 48 V AC/DC, Schneider Electric
- Product Code: LR97D015E
- Brand: Schneider Electric
- Availability: To be confirmed
- € 89.42 Ex Tax:
MAIN CHARACTERISTICS
device short name
LR97
product or component type
ELECTRONIC OVERCURRENT RELAY
device application
PROTECTION
relay application
LCKD ROTOR MECH I>3XISETTING
product compatibility
LC1D09..D38
network type
AC
[Us] rated supply voltage
48 V ACDC
thermal protection adjustment range
0.3...1.5 A
quantity per set
SET OF 10
COMPLEMETARY CHARACTERISTICS
network frequency
50..60 HZ
mounting support
DIRECT ON CONTACTOR
tripping threshold
0.3..1.3 A
surge withstand
6 KV CONFORMING TO IEC 61000-4-5
contacts type and composition
1 CO
[Ith] conventional free air thermal current
3 A FOR CONTROL CIRCUIT
protection type
BS FUSE 3 A - FOR CONTROL CIRCUIT
maximum power
28 W AT 110 V DC CONFORMING TO IEC 60947
[Ui] rated insulation voltage
600 V POWER CIRCUIT CONFORMING TO CSA
[Uimp] rated impulse withstand voltage
6 KV
phase failure sensitivity
< 3 S
reset
AUTOMATIC RESET 120 S FIXED
time range
0.2..10 S - O-TIME KNOB
signalling function
2 LEDS
connections - terminals
control circuit : cable 1 cable 1...25 mm² - cable stiffness: flexible - with cable end
tightening torque
control circuit : 0.6...1.2 N.m - on lug-clamp
height
67.5 MM
width
45 MM
depth
67.5 MM
product weight
0.172 KG
compatibility code
LR97
