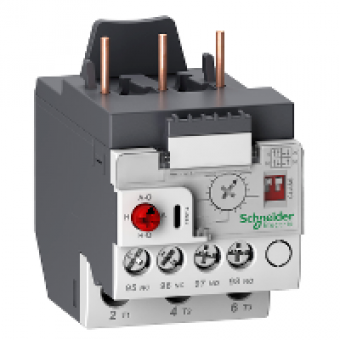

LR9D08 - TeSys LRD - electronic thermal overload relay - 3P - 1.6...8 A, Schneider Electric
- Product Code: LR9D08
- Brand: Schneider Electric
- Availability: To be confirmed
- € 55.13 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS LRD
device short name
LR9D
product or component type
ELEC THERMAL OVERLOAD RELAY
relay application
MOTOR PROTECTION
product compatibility
LC1D09
thermal overload class
CLASS 530
thermal protection adjustment range
1.6...8 A
power consumption in W
<= 300 MW
mounting support
UNDER CONTACTOR
COMPLEMETARY CHARACTERISTICS
[Ue] rated operational voltage
690 V FOR POWER CIRCUIT
[Ui] rated insulation voltage
1000 V POWER CIRCUIT
tripping threshold
1.25 IN CONFORMING TO IEC 60947-4-1
control type
RED PUSH-BUTTON STOP AND MANUAL RESET
time range
1.5...4 MIN - AUTOMATIC RESET TIME
[Ith] conventional free air thermal current
5 A FOR SIGNALLING CIRCUIT
[Uimp] rated impulse withstand voltage
6 KV
phase failure sensitivity
PHASE DIFFERENCE > 40 CONFORMING TO IEC 60947-4-1
electromagnetic compatibility
SURGE WITHSTAND 2 KV COMMON MODE IEC 61000-4-5
connections - terminals
CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 CABLE 2.5 MM - CABLE STIFFNESS SOLID OR FLEXIBLE - WITHOUT CABLE END
tightening torque
control circuit : 0.8 N.m - on screw clamp terminals
height
72.5 MM
width
45 MM
depth
79.9 MM
product weight
0.18 KG
