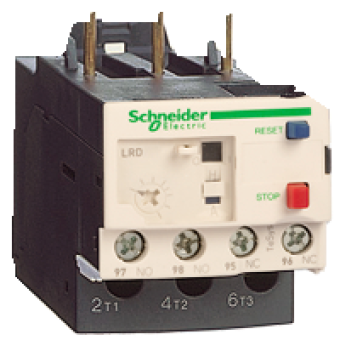

LRD05 - TeSys LRD thermal overload relays - 0.63...1 A - class 10A, Schneider Electric
- Product Code: LRD05
- Brand: Schneider Electric
- Availability: To be confirmed
- € 21.83 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS LRD
product or component type
DIFF THERMAL OVERLOAD RELAY
device short name
LRD
relay application
MOTOR PROTECTION
product compatibility
LC1D09
network type
AC
thermal protection adjustment range
0.63...1 A
[Ui] rated insulation voltage
600 V POWER CIRCUIT CONFORMING TO CSA
COMPLEMETARY CHARACTERISTICS
network frequency
0..400 HZ
mounting support
PLATE WITH SPECIFIC ACCESSORIES
tripping threshold
1.14 +- 0.06 IR CONFORMING TO IEC 60947-4-1
[Ith] conventional free air thermal current
5 A FOR SIGNALLING CIRCUIT
permissible current
3 A AT 120 V AC-15 FOR SIGNALLING CIRCUIT
[Ue] rated operational voltage
690 V AC 0...400 HZ
[Uimp] rated impulse withstand voltage
6 KV
phase failure sensitivity
TRIPPING CURRENT 130 OF IR ON TWO PHASE THE LAST ONE AT 0
control type
red push-button stop
temperature compensation
-20...60 C
connections - terminals
control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: flexible - without cable end
tightening torque
control circuit : 1.7 N.m - on screw clamp terminals
width
45 MM
depth
70 MM
product weight
0.124 KG
compatibility code
LRD
