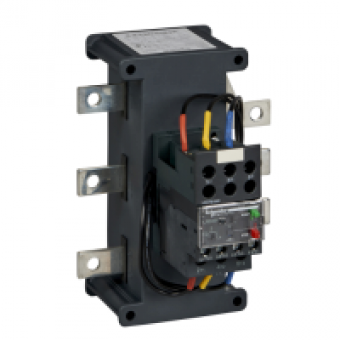

LRE481 - EasyPact TVS differential thermal overload relay 62...99 A - class 10A, Schneider Electric
- Product Code: LRE481
- Brand: Schneider Electric
- Availability: To be confirmed
- € 47.44 Ex Tax:
MAIN CHARACTERISTICS
range
EASYPACT
product name
EASYPACT TVS
product or component type
DIFF THERMAL OVERLOAD RELAY
device short name
LRE
relay application
MOTOR PROTECTION
phase failure sensitivity
tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
COMPLEMETARY CHARACTERISTICS
product compatibility
LC1E120..630
network type
AC
network frequency
50..60 HZ
mounting support
UNDER CONTACTOR
thermal overload class
CLASS 10A CONFORMING TO IEC 60947-4-1
signalling function
RELAY TRIP INDICATOR
thermal protection adjustment range
62...99 A
tripping threshold
1.14 +- 0.06 IR CONFORMING TO IEC 60947-4-1
mechanical robustness
SHOCKS 6 GN FOR 11 MS CONFORMING TO IEC 60068-2-7
auxiliary contact composition
1 NO + 1 NC
[Ith] conventional free air thermal current
SIGNALLING CIRCUIT 5 A
[Ue] rated operational voltage
<= 690 V AC
associated fuse rating
power circuit : 160 A (gG)
[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage
6 KV
local signalling
TRIP INDICATOR
control type
STOP RED PUSH-BUTTON
temperature compensation
-20...60 C
connection pitch
34.8 MM
connections - terminals
SCREW CLAMP TERMINALS SIGNALLING CIRCUIT 2 FLEXIBLE CABLES WITHOUT CABLE END OF 1...2.5 MM
tightening torque
power circuit (bars): 27.5 N.m for M8 screw(s)
height
141 MM
width
180 MM
depth
134 MM
product weight
2.2 KG
