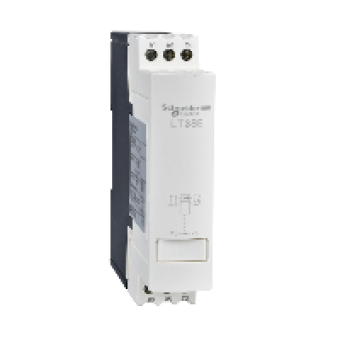

LT3SE00F - PTC probe relay TeSys - LT3 with automatic reset - 115 V - 1 NC, Schneider Electric
- Product Code: LT3SE00F
- Brand: Schneider Electric
- Availability: To be confirmed
- € 56.06 Ex Tax:
MAIN CHARACTERISTICS
range of product
LT3
device short name
LT3SE
product or component type
THERMISTOR PROTECTION UNITS
[Uc] control circuit voltage
115 V AC 5060 HZ
reset
AUTOMATIC RESET
COMPLEMETARY CHARACTERISTICS
control circuit voltage limits
0.85..1.1 UC
contacts type and composition
1 NC SINGLE VOLTAGE
[Ith] conventional free air thermal current
5 A FOR OUTPUT CONTROL RELAY
[Ui] rated insulation voltage
500 V AC OUTPUT CONTROL RELAY
[Ue] rated operational voltage
250 V AC 5060 HZ FOR OUTPUT CONTROL RELAY
signalling function
WITHOUT
control type
AUTOMATIC RESET
probe interchangeability
LABEL MARK A CONFORMING TO IEC 60034-11
hold-in power consumption in W
>= 1 W
hold-in power consumption in VA
< 2.5 VA
resistance
1500..1650 OHM RESET
number of probes
0...6
input voltage
< 2.5 V 1500 OHM FOR PROBE
short circuit detection resistance
< 20 OHM
condition of use
CONNECTION OF PROBES 400 M FOR >= 1 MM
[Uimp] rated impulse withstand voltage
2.5 KV
rated power in VA
100 VA at 220 V - electrical durability: 500000 cycles
breaking capacity
2 A AT 24 V DC DC-13
connections - terminals
power circuit : cage type connector 1 cable 0.75...2.5 mm² - cable stiffness: flexible - with cable end
tightening torque
0.8 N.M
height
100 MM
width
22.5 MM
depth
100 MM
product weight
0.22 KG
compatibility code
LT3SE
