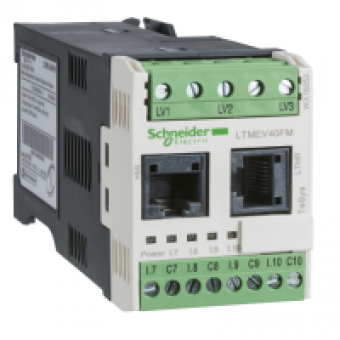

LTMEV40FM - extension module LTME TeSys T - 100..240 V AC, Schneider Electric
- Product Code: LTMEV40FM
- Brand: Schneider Electric
- Availability: To be confirmed
- € 143.13 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS T
device short name
LTME
product or component type
EXTENSION MODULE
device application
EQUIPMENT MNTRG AND CONTROL
range compatibility
TESYS T LTMR MOTOR CONTROLLER
[Us] rated supply voltage
NO RENDITION
supply
VIA THE CONTROLLER
COMPLEMETARY CHARACTERISTICS
[Ui] rated insulation voltage
690 V CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
4 KV FOR SUPPLY INPUTS AND OUTPUTS CONFORMING TO ENIEC 60947-4-1
logic input number
4
input current
3.1 MA AT 100 V
input/output type
LOGIC INPUT 0...40 V AND 2 A...15 MA FOR 25 MS AT STATE 0
maximum output switching frequency
2 HZ
operating rate
1800 CYCH
contacts type and composition
WITHOUT
metering type
ACTIVE POWER P P1 P2 P3
measurement accuracy
1 VOLTAGE 100..830 V
overvoltage category
III
connection pitch
5.08 MM
connections - terminals
connector, 1 flexible cable with cable end 0.25...2.5 mm² /AWG 24...AWG 14 for control circuit
tightening torque
0.5...0.6 N.M 3 MM FLAT SCREWDRIVER FOR CONTROL CIRCUIT
pollution degree
3
electromagnetic compatibility
ELECTROSTATIC DISCHARGE 3 8 KV AIR 6 KV CONTACT CONFORMING TO ENIEC 61000-4-2
width
45 MM
height
61 MM
depth
120.7 MM
product weight
0.21 KG
compatibility code
LTME
