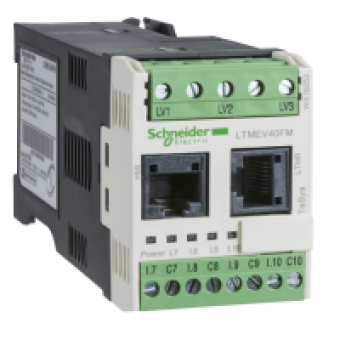

LTMR100MBD - motor controller LTMR TeSys T - 24 V DC 100 A for Modbus, Schneider Electric
- Product Code: LTMR100MBD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 471.09 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS T
device short name
LTMR
product or component type
MOTOR CONTROLLER
device application
EQUIPMENT MNTRG AND CONTROL
measurement current
5...100 A
[Us] rated supply voltage
24 V DC
current consumption
56...127 MA
supply voltage limits
20.4...26.24 V DC
communication port protocol
MODBUS
bus type
MODBUS 2-WIRE RS 485 INTERFACE ADDRESSING 1...247 TRANSMISSION RATE 1.2...19.2 KBITS RJ45 WITH 2 SHIELDED TWISTED PAIRS
COMPLEMETARY CHARACTERISTICS
[Ui] rated insulation voltage
690 V CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV FOR CURRENT OR VOLTAGE MEASUREMENT CIRCUIT CONFORMING TO ENIEC 60947-4-1
short-circuit withstand
100 KA CONFORMING TO ENIEC 60947-4-1
associated fuse rating
4 A GG FOR OUTPUT
protection type
EARTH-LEAKAGE PROTECTION
network and machine diagnosis type
PH FLT + E FAULT TRIP COUNTERS
logic input number
6
input current
7 MA
input/output type
LOGIC INPUT < 15 V AND 2 A...15 MA FOR 15 MS AT STATE 1
maximum output switching frequency
2 HZ
load current
5 A AT 250 V AC FOR LOGIC OUTPUT
permissible power
480 VA AC-15 IE = 2 A 500000 CYCLES OUTPUT
operating rate
1800 CYCH
contacts type and composition
1 NO + 1 NC FAULT SIGNAL
metering type
EARTH-FAULT CURRENT
measurement accuracy
5...15 EARTH FAULT CURRENT INTERNAL MEASUREMENT FOR CURRENT > 0.3 A
overvoltage category
III
connection pitch
5.08 MM
connections - terminals
connector, 1 flexible cable with cable end 0.25...2.5 mm² /AWG 24...AWG 14 for control circuit
tightening torque
0.5...0.6 N.M 3 MM FLAT SCREWDRIVER FOR CONTROL CIRCUIT
pollution degree
3
electromagnetic compatibility
ELECTROSTATIC DISCHARGE 3 8 KV AIR 6 KV CONTACT CONFORMING TO ENIEC 61000-4-2
width
91 MM
height
61 MM
depth
122.5 MM
product weight
0.53 KG
web services
WEB SERVER
compatibility code
LTMR
The Schneider Electric LTMR100MBD is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
