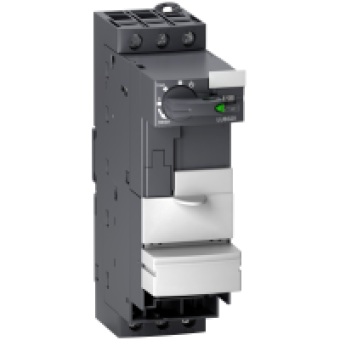

LUB320 - power base - TeSys U - 32 A - no connections control, Schneider Electric
- Product Code: LUB320
- Brand: Schneider Electric
- Availability: To be confirmed
- € 52.22 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
product name
TESYS U
device short name
LUB
product or component type
NON REVERSING POWER BASE
device application
MOTOR
poles description
3P
suitability for isolation
YES
[Ith] conventional free air thermal current
32 A
utilisation category
AC-41
[Uc] control circuit voltage
24 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
auxiliary contact composition
1 NO + 1 NC
auxiliary contacts type
TYPE LINKED CONTACTS 1 NO + 1 NC CONFORMING TO IEC 60947-4-1
[Ue] rated operational voltage
230 V
network frequency
40..60 HZ
[Ie] rated operational current
21 A AT 690 V
[Ics] rated service breaking capacity
10 KA 500 V
typical current consumption
200 MA AT 24 V DC I MAXIMUM WHILE CLOSING WITH LUCM
safety reliability level
B10d 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
operating time
35 MS OPENING WITH LUCA LUCB LUCC LUCD LUCM FOR CONTROL CIRCUIT
mechanical durability
15000000 CYCLES
operating rate
60 CYCMN
[Ui] rated insulation voltage
600 V CONFORMING TO UL 508
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-6-2
safe separation of circuit
400 V SELV BETWEEN THE CONTROL AND AUXILIARY CIRCUITS CONFORMING TO IEC 60947-1 APPENDIX N
connections - terminals
power circuit : screw clamp terminals 1 cable 1...10 mm² - cable stiffness: rigid - without cable end
tightening torque
control circuit : 0.8...1.2 N.m - with screwdriver 5 mm flat
width
45 MM
height
145 MM
depth
126 MM
product weight
0.865 KG
compatibility code
LUB
