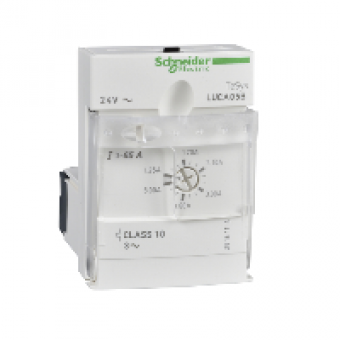

LUCA05BL - standard control unit LUCA - class 10 - 1.25...5 A - 24 V DC, Schneider Electric
- Product Code: LUCA05BL
- Brand: Schneider Electric
- Availability: To be confirmed
- € 54.83 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
product name
TESYS U
device short name
LUCA
product or component type
STANDARD CONTROL UNIT
product specific application
BS PROT MTR STR OVERLD SC
product compatibility
ASILUFC5
utilisation category
AC-41
motor power kW
3 KW AT 690 V AC 5060 HZ
thermal protection adjustment range
1.25...5 A
[Uc] control circuit voltage
24 V DC
thermal overload class
CLASS 10 - FREQUENCY LIMIT 40...60 HZ - TEMPERATURE COMPENSATION -25...70 C - CONFORMING TO IEC 60947-6-2
COMPLEMETARY CHARACTERISTICS
main function available
EARTH FAULT PROTECTION
mounting mode
PLUG IN
mounting location
FRONT SIDE
control circuit voltage limits
20...27 V FOR DC CIRCUIT 24 V IN OPERATION
typical current consumption
130 MA AT 24 V DC I MAXIMUM WHILE CLOSING WITH LUB12
operating time
35 MS OPENING WITH LUB12 FOR CONTROL CIRCUIT
load type
3-PHASE MOTOR - COOLING SELF-COOLED
tripping threshold
14.2 X IR +- 20
[Ui] rated insulation voltage
600 V CONFORMING TO UL 508
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-6-2
safe separation of circuit
400 V SELV BETWEEN THE CONTROL AND AUXILIARY CIRCUITS CONFORMING TO IEC 60947-1
product weight
0.135 KG
compatibility code
LUCA
