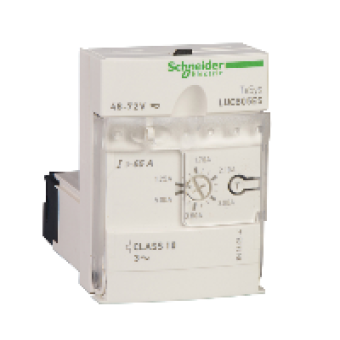

LUCB1XFU - advanced control unit LUCB - class 10 - 0.35...1.4 A - 110...220 V DC/AC, Schneider Electric
- Product Code: LUCB1XFU
- Brand: Schneider Electric
- Availability: To be confirmed
- € 48.55 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
product name
TESYS U
device short name
LUCB
product or component type
ADVANCED CONTROL UNIT
product specific application
BASIC PROT AND ADV FCT COM
product compatibility
LUFC00
utilisation category
AC-41
motor power kW
0.25 KW AT 400...440 V AC 5060 HZ
thermal protection adjustment range
0.35...1.4 A
[Uc] control circuit voltage
110..220 V DC
thermal overload class
CLASS 10 - FREQUENCY LIMIT 40...60 HZ - TEMPERATURE COMPENSATION -25...70 C - CONFORMING TO IEC 60947-6-2
COMPLEMETARY CHARACTERISTICS
main function available
EARTH FAULT PROTECTION
mounting mode
PLUG IN
mounting location
FRONT SIDE
control circuit voltage limits
88...242 V FOR DC CIRCUIT 110...220 V IN OPERATION
typical current consumption
25 MA AT 110...240 V AC I RMS SEALED WITH LUB12
operating time
35 MS OPENING WITH LUB12 FOR CONTROL CIRCUIT
load type
3-PHASE MOTOR - COOLING SELF-COOLED
tripping threshold
14.2 X IR +- 20
[Ui] rated insulation voltage
600 V CONFORMING TO UL 508
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-6-2
safe separation of circuit
400 V SELV BETWEEN THE CONTROL AND AUXILIARY CIRCUITS CONFORMING TO IEC 60947-1
compatibility code
LUCB
