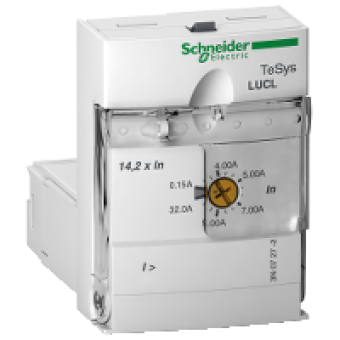

LUCL32BL - magnetic control unit LUCL 8...32 A - 24 V - DC, Schneider Electric
- Product Code: LUCL32BL
- Brand: Schneider Electric
- Availability: To be confirmed
- € 84.18 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
product name
TESYS U
device short name
LUCL
product or component type
MAGNETIC CONTROL UNIT
product specific application
PROT VRBLE SPD DRV SOFT START
product compatibility
ASILUFC5
utilisation category
AC-41
motor power kW
15 KW AT 690 V AC 5060 HZ
thermal protection adjustment range
8...32 A
[Uc] control circuit voltage
24 V DC
user language
ENGLISH - SETTING FACTORY SETTING
COMPLEMETARY CHARACTERISTICS
main function available
MANUAL RESET
mounting mode
PLUG IN
mounting location
FRONT SIDE
control circuit voltage limits
14.5 V FOR DC CIRCUIT 24 V DROP-OUT
typical current consumption
130 MA AT 24 V DC I MAXIMUM WHILE CLOSING WITH LUB12
operating time
35 MS OPENING WITH LUB12 FOR CONTROL CIRCUIT
load type
3-PHASE MOTOR - COOLING SELF-COOLED - SETTING FACTORY SETTING
tripping threshold
14.2 X IR +- 20
reset
AUTOMATIC RESET - SETTING SETTING RANGE
Time before reset
1...1000 S - RESET MANUAL OR AUTOMATIC RESET - SETTING SETTABLE
information displayed
AVERAGE CURRENT - SETTING FACTORY SETTING
[Ui] rated insulation voltage
600 V CONFORMING TO UL 508
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-6-2
safe separation of circuit
400 V SELV BETWEEN THE CONTROL AND AUXILIARY CIRCUITS CONFORMING TO IEC 60947-1
product weight
0.135 KG
compatibility code
LUCL
