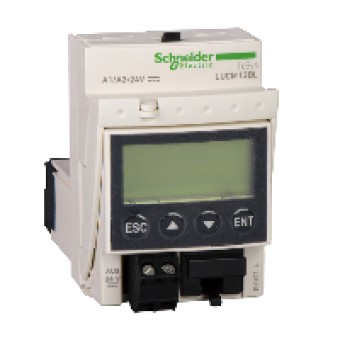

LUCM32BL - multifunction control unit LUCM - class 5...30 - 8...32 A - 24 V DC, Schneider Electric
- Product Code: LUCM32BL
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
product name
TESYS U
device short name
LUCM
product or component type
MULTIFUNCTION CONTROL UNIT
product specific application
CTRL AND PROT REQD DISPLAY
product compatibility
ASILUFC5
utilisation category
AC-41
motor power kW
15 KW AT 400...440 V AC 5060 HZ
thermal protection adjustment range
8...32 A
[Uc] control circuit voltage
24 V DC
thermal overload class
CLASS 530 - FREQUENCY LIMIT 50...60 HZ - TEMPERATURE COMPENSATION -25...55 C - CONFORMING TO IEC 60947-6-2
user language
ENGLISH - SETTING FACTORY SETTING
COMPLEMETARY CHARACTERISTICS
main function available
DIFFN OF THERM OVERLD+MAGN FLT
mounting mode
PLUG IN
mounting location
FRONT SIDE
control circuit voltage limits
20...28 V FOR DC CIRCUIT 24 V IN OPERATION
typical current consumption
150 MA AT 24 V DC I MAXIMUM WHILE CLOSING WITH LUB12
operating time
35 MS OPENING WITH LUB12 FOR CONTROL CIRCUIT
load type
SINGLE-PHASE MOTOR - COOLING SELF-COOLED FORCE COOLED - SETTING SETTABLE
tripping threshold
14.2 X IR +- 20
physical interface
RS485 MULTIDROP - CONNECTORS RJ45 - LOCATION FRONT PANEL - COMMUNICATION PROTOCOL MODBUS RTU 19200 BITS
return time
<= 200 MS
messages display capacity
2 LINES OF 12 CHARACTERS - DISPLAY LCD - ENGLISH - ACCURACY +- 5 - RESOLUTION 1 OF IR
reset
AUTOMATIC RESET - SETTING SETTING RANGE
Time before reset
1...1000 S - RESET MANUAL OR AUTOMATIC RESET - SETTING SETTABLE
information displayed
AVERAGE CURRENT - SETTING FACTORY SETTING
[Ui] rated insulation voltage
600 V CONFORMING TO UL 508
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-6-2
safe separation of circuit
400 V SELV BETWEEN THE CONTROL AND AUXILIARY CIRCUITS CONFORMING TO IEC 60947-1
product weight
0.175 KG
compatibility code
LUCM
