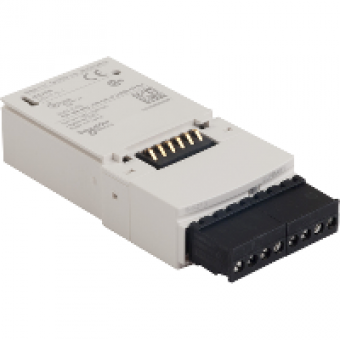

LUFDA01 - function module - thermal overload signalling - 1NC - for TeSys U, Schneider Electric
- Product Code: LUFDA01
- Brand: Schneider Electric
- Availability: To be confirmed
- € 55.51 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
device short name
LUF
product or component type
FUNCTION MODULE
product compatibility
LUCB
COMPLEMETARY CHARACTERISTICS
mounting mode
PLUG IN
mounting location
FRONT SIDE
main function available
THRM OVERLD SIGLG+AUTO RMT RST
auxiliary contact composition
1 NC
communication of faults
LED FRONT PANEL
[Us] rated supply voltage
NO RENDITION
[Ith] conventional free air thermal current
2 A AT <= 70 DC
short-circuit protection
2 A FUSE GG CONFORMING TO IEC 60947-5-1
connection pitch
5.08 MM
tightening torque
0.5...0.6 N.M - WITH SCREWDRIVER 3.5 MM FLAT
product weight
0.055 KG
compatibility code
LUF
The Schneider Electric LUFDA01 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
