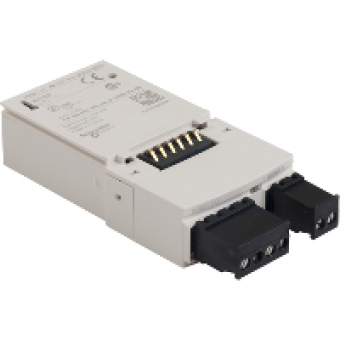

LUFDH11 - function module - thermal overload signalling - 1 NO + 1 NC - forTeSys U, Schneider Electric
- Product Code: LUFDH11
- Brand: Schneider Electric
- Availability: To be confirmed
- € 50.99 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
device short name
LUF
product or component type
FUNCTION MODULE
product compatibility
LUCB
COMPLEMETARY CHARACTERISTICS
mounting mode
PLUG IN
mounting location
FRONT SIDE
main function available
THERMAL OVERLD SIGLG+MAN RST
auxiliary contact composition
1 NO + 1 NC
communication of faults
LED FRONT PANEL
[Us] rated supply voltage
24..240 V DC
current consumption
7 MA AT 24 V DC
discrete output function
1 NO + 1 NC AC-15 AT 230 V - POWER 400 VA - ELECTRICAL SERVICE LIFE 100000 CYCLES
[Ith] conventional free air thermal current
2 A AT <= 70 DC
short-circuit protection
2 A FUSE GG CONFORMING TO IEC 60947-5-1
input type
REMOTE RESET - CABLE CROSS SECTION 0.2...1.5 MM - RELATIVE IMPEDANCE 50 OHM 52.8 MH - CABLE CAPACITANCE 0.093 NF
connection pitch
5.08 MM
connections - terminals
SCREW CLAMP TERMINALS 2 CABLE 0.2...1 MM - CABLE STIFFNESS RIGID - WITHOUT CABLE END
associated cable type
NO RENDITION
tightening torque
0.5...0.6 N.M - WITH SCREWDRIVER 3.5 MM FLAT
product weight
0.06 KG
compatibility code
LUF
