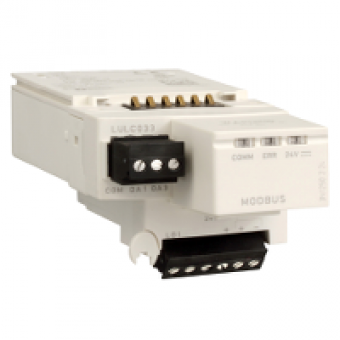

LULC033 - communication module - for TeSys U - 24 V DC, Schneider Electric
- Product Code: LULC033
- Brand: Schneider Electric
- Availability: To be confirmed
- € 71.30 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
device short name
LUL
product or component type
COMMUNICATION MODULE
product compatibility
LUCA
device application
COMMUNICATION
range compatibility
TESYS TESYS U LUB NON REVERSING POWER BASE
COMPLEMETARY CHARACTERISTICS
main function available
COMMUNICATION MODULE
mounting mode
PLUG IN
mounting location
FRONT SIDE
physical interface
RS485 MULTIDROP
bus type
MODBUS
cable connector type
RJ45 FRONT PANEL
communication port protocol
MODBUS RTU
addressing
0..31
transmission rate
19200 BIT S
return time
30 MS
number of inputs
2
logic input
positive at 24 V DC - 7 mA
response time
10 MS +- 30 CHANGE TO STATE 0
input type
RESISTIVE
number of outputs
2 DEDICATED TO STARTER-CONTROLLER COIL OPERATION
[Us] rated supply voltage
24 V DC
output current
<= 500 MA
protection type
GG FUSE 1 A
switching current capacity
0.5 MA AT 24 V
local signalling
3 LEDS FRONT PANEL
connection pitch
3.81 MM
connections - terminals
SCREW CLAMP TERMINALS 1 CABLE 0.14...1 MM - CABLE STIFFNESS FLEXIBLE - WITHOUT CABLE END
associated cable type
AWG 26..AWG 16
tightening torque
0.2...0.25 N.M - WITH SCREWDRIVER 2.5 MM
product weight
0.08 KG
compatibility code
LUL
