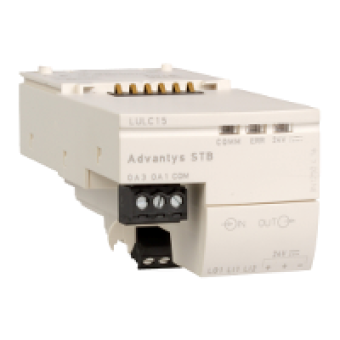

LULC15 - advantys STB communication module - for TeSys U - 24 V DC, Schneider Electric
- Product Code: LULC15
- Brand: Schneider Electric
- Availability: To be confirmed
- € 112.91 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS U
range
TESYS
device short name
LUL
product or component type
COMMUNICATION MODULE
product compatibility
LUCA
device application
COMMUNICATION
range compatibility
TESYS TESYS U LUB NON REVERSING POWER BASE
COMPLEMETARY CHARACTERISTICS
main function available
COMMUNICATION MODULE
mounting mode
PLUG IN
mounting location
FRONT SIDE
physical interface
CAN
bus type
ADVANTYS STB
cable connector type
FIRE WIRE
communication port protocol
CAN2.0A
addressing
SELF-ADDRESSING
transmission rate
800 KBIT S
current consumption
1.5 MA AT 24 V DC 20..28 V
logic input
positive at 24 V DC - 7 mA
response time
10 MS +- 30 CHANGE TO STATE 0
input type
RESISTIVE
number of outputs
2 DEDICATED TO STARTER-CONTROLLER COIL OPERATION
[Us] rated supply voltage
24 V DC
output current
<= 500 MA
switching current capacity
0.5 MA AT 24 V
local signalling
3 LEDS FRONT PANEL
connection pitch
3.81 MM
connections - terminals
SCREW CLAMP TERMINALS 1 CABLE 0.14...1 MM - CABLE STIFFNESS FLEXIBLE - WITHOUT CABLE END
associated cable type
AWG 26..AWG 16
tightening torque
0.2...0.25 N.M - WITH SCREWDRIVER 2.5 MM
compatibility code
LUL
