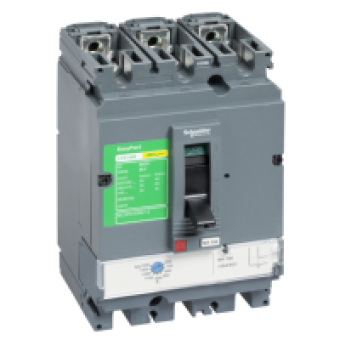

• LV525331 - Easypact CVS - CVS250F TM160D circuit breaker - 3P/3d, Schneider Electric

LV525331 - Easypact CVS - CVS250F TM160D circuit breaker - 3P/3d, Schneider Electric

  • € 168.69 Ex Tax:

MAIN CHARACTERISTICS
range
EASYPACT
range of product
EASYPACT CVS100..250
product name
EASYPACT CVS
product or component type
CIRCUIT BREAKER
device short name
CVS250F
device application
DISTRIBUTION
poles description
3P
protected poles description
3D
Earth leakage protection (Vigi add on)
WITHOUT
[In] rated current
250 A 40 DC
breaking capacity code
F
network type
AC
[Ue] rated operational voltage
440 V AC CONFORMING TO ENIEC 60947-2 5060 HZ
[Icu] Breaking capacity
36 KA ICU CONFORMING TO IEC 60947-2 AT 440 V AC 5060 HZ
utilisation category
A
trip unit name
TM-D
trip unit technology
THERMAL-MAGNETIC
trip unit rating
160 A 40 DC
protection type
OVERLOAD PROTECTION THERMAL
COMPLEMETARY CHARACTERISTICS
network frequency
50 60 HZ
control type
TOGGLE
mounting mode
FIXED
mounting support
BACKPLATE
upside connection
FRONT
downside connection
FRONT
connections - terminals
SCREW CONNECTION
[Ui] rated insulation voltage
690 V CONFORMING TO ENIEC 60947-2
[Uimp] rated impulse withstand voltage
8 KV CONFORMING TO ENIEC 60947-2
thermal protection adjustment range
0...160 A
[Ics] rated service breaking capacity
18 KA CONFORMING TO IEC 60947-2 440 V AC 5060 HZ
mechanical durability
20000 CYCLES
electrical durability
10000 CYCLES CONFORMING TO IEC 60947-2 415 V IN
connection pitch
35 MM
contact position indicator
YES
long time pick-up adjstment type Ir
ADJUSTABLE
long time pick-up adjustment range
0.7..1 X IN
long time delay adjustment type
FIXED
short-time delay adjustment type
FIXED
instantaneous pick-up adjustment type Ii
FIXED
instantaneous pick-up adjustment range
1250 A
height
161 MM
width
105 MM
depth
86 MM
compatibility code
CVS250
